TGM25-075-26-3V-052A-5R-LW4
| Minimum Purchase Quantity | 25 |
|---|---|
| Frame Size (mm) | 25 |
| Holding Torque (g-cm) | 450 |
| Bipolar Series RMS Current (A) | 0.52 |
| Bipolar Series Resistance Per Phase (ohm) | 5 |
| Bipolar Series RMS Voltage (V) | 2.6 |

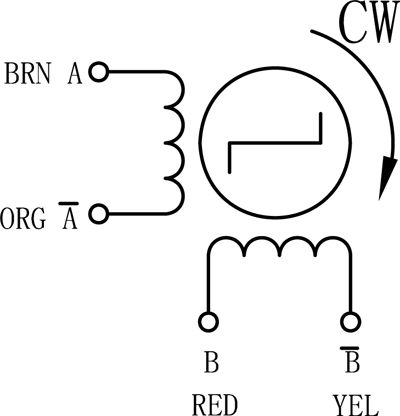

| # of Lead Wires | 4 |
| Weight (lbs) | 0.1 |
Interested in large quantity discount?
Product Information

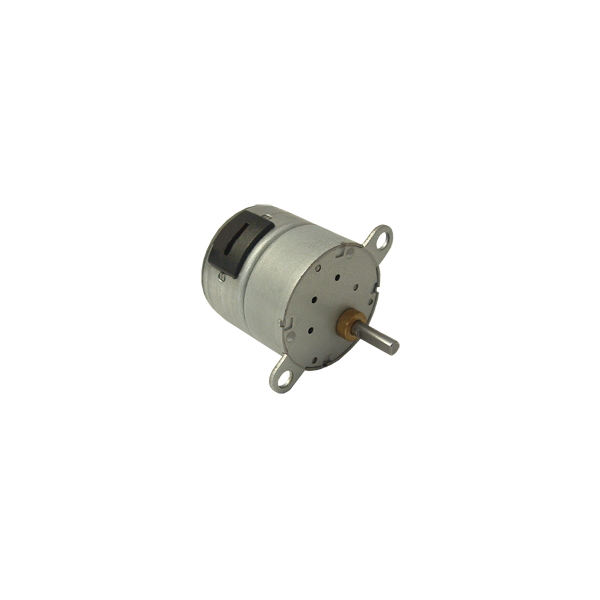

The TGM25 Series are small Permanent Magnet DC gearmotors measuring 25mm in diameter, and providing up to 55.55 ounce-inches of holding torque. These CE Certified motors come standard with a 7.5° step angle, 5:1 or 30:1 gear ratios, and four or six-lead wire connection as standard. Customization is available for larger quantities.
*Note: Not all motors are stock items. Minimum purchases may apply. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper Gearmotor
- High Torque in a Small Package at a Low Cost
- Up to 4000 g-cm Holding Torque (55.55 oz-in)
- 5:1 and 30:1 Gear Ratios Available
- 25 mm Diameter
- CE Certified and RoHS Compliant
.png)
.png)
Spec Sheet (PDF)
