TGM25-150-26-3V-037A-5R-LW4
| Minimum Purchase Quantity | 25 |
|---|---|
| Frame Size (mm) | 25 |
| Holding Torque (g-cm) | 500 |
| Bipolar Series RMS Current (A) | 0.365 |
| Bipolar Series Resistance Per Phase (ohm) | 9.6 |
| Bipolar Series RMS Voltage (V) | 3.5 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.1 |
Interested in large quantity discount?

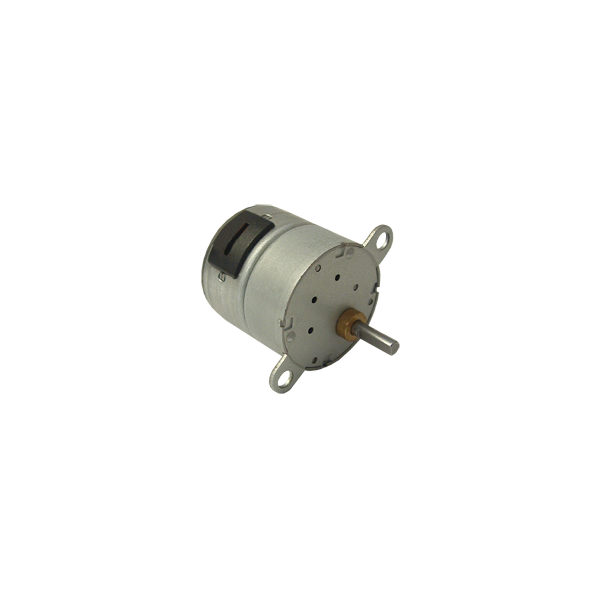

Product Information
The TGM25 Series are small Permanent Magnet DC gearmotors measuring 25mm in diameter, and providing up to 6.94 ounce inches of holding torque. These CE Certified motors come standard with a 15° step angles, 5:1 gear ratio, and four-lead as standard. Customization is available for larger quantities.
*Note: Not all motors are stock items. Minimum purchases may apply. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper Gearmotor
- High Torque in a Small Package at a Low Cost
- Up to 500 g-cm Holding Torque (6.94 oz-in)
- 5:1 Gear Ratio
- 25mm Diameter
- CE Certified and RoHS Compliant
.png)
.png)
Spec Sheet (PDF)
