TSM25-075-15-5V-050A-LW4
| Frame Size (mm) | 25 |
|---|---|
| Bipolar Holding Torque (oz-in) | 1.666 |
| Bipolar RMS Current (A) | 0.5 |
| Bipolar RMS Voltage (V) | 5 |
| Bipolar Series Inductance Per Phase (mH) | 5.4 |
| Rotor Inertia (oz-in-sec2) | 0.0000141 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.06 |
| Length (in) | 0.590549 |
Interested in large quantity discount?
Product Information

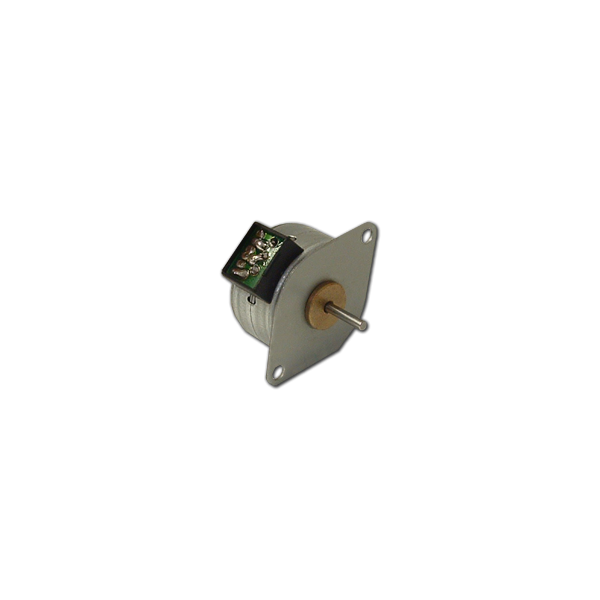

These miniature Permanent Magnet DC Stepper Motors measure 25mm in diameter and provide up to 1.666 ounce-inches of bipolar torque. These CE-Certified motors come standard with 7.5° step angles, four or six-lead wire connection, offered in several current ratings. Customization is available for larger quantities.
- Permanent Magnet Stepper Motor
- Precise Motion at a Low Cost
- 110 g-cm of Torque (up to 1.666 oz-in bipolar torque)
- 25mm Diameter
- Customization Available for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
.png)
.png)
