TSM35-075-22-12V-020A-LW4
| Frame Size (mm) | 35 |
|---|---|
| Bipolar Holding Torque (oz-in) | 7.638 |
| Bipolar RMS Current (A) | 0.2 |
| Bipolar RMS Voltage (V) | 12 |
| Bipolar Series Inductance Per Phase (mH) | 78.6 |
| Rotor Inertia (oz-in-sec2) | 0.00010575 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.18 |
| Length (in) | 0.866139 |
Interested in large quantity discount?
Product Information

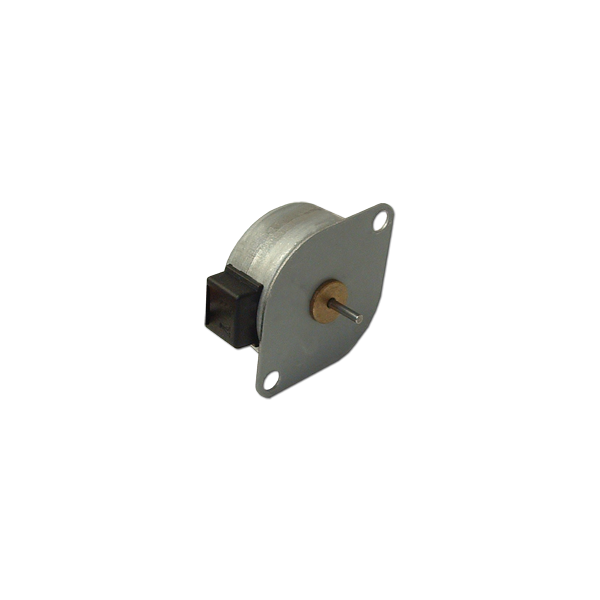

These miniature Permanent Magnet DC Stepper Motors measure 35mm in diameter and provide up to 4.861 ounce-inches of bipolar torque. These CE-Certified motors come standard with 7.5 or 15° step angles, as four-lead wire connection as standard, offered in several current ratings. Customization is available for larger quantities.
- Permanent Magnet Stepper Motor
- Precise Motion at a Low Cost
- 350 g-cm of Torque (4.861 oz-in bipolar torque)
- 35mm Diameter
- Customization Available for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
