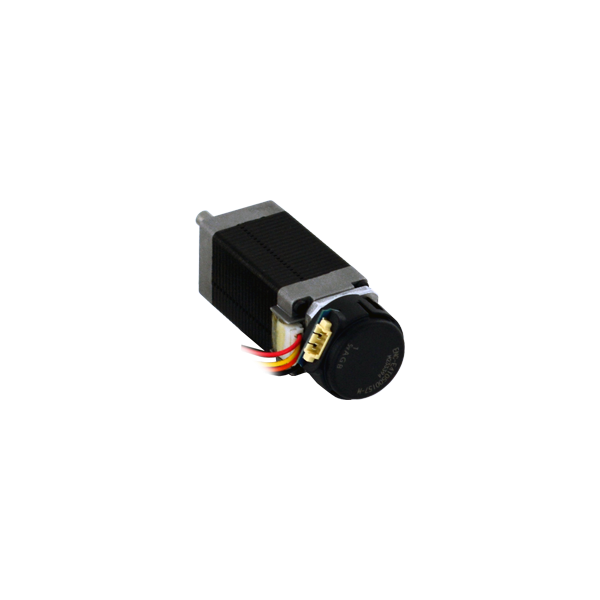

08Y102D-LW4-400SN8
| NEMA Size | 8 |
|---|---|
| Bipolar Torque (oz-in) | 2.5 |
| Bipolar Series RMS Current (A) | 0.6 |
| Bipolar Series RMS Voltage (V) | 3.9 |
| Bipolar Series Inductance Per Phase (mH) | 1.7 |
| Bipolar Series Resistance Per Phase (ohm) | 6.5 |
| Rotor Inertia (oz-in-sec2) | 0.000028 |
| # of Lead Wires | 4 |
| Shaft | Double |
| Weight (lbs) | 0.14 |
| Length (in) | 1.75 |
| Included Accessory | ENC-A4TS 400 Line Encoder, Single-Ended, No Index |
Interested in large quantity discount?
Product Information
The 08Y Series High Torque Stepper Motors offer High Torque in a compact size. These motors are
designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, or the motors can be customized to fit your machine requirements. The motor comes in a standard 4-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds. Special shaft modifications,
cables and connectors are also available upon request.
See Accessories on this website for optional motor adders, such as encoders, cables, and connectors. See compatible drivers for the 08Y Series; MBC15081, MBC25081TB.
- NEMA 08 Frame Size
- 1.8° Step Angle
- IP50 Rated
- High Torque - Up to 4.2 oz-in
- High Step Accuracy and Resolution
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual shaft option only
.png)
.jpg)
.png)
