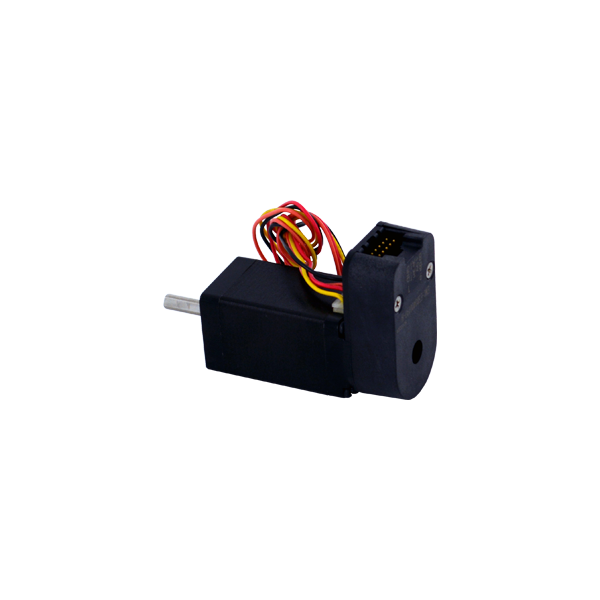

11Y302D-LW4-400DN
| NEMA Size | 11 |
|---|---|
| Bipolar Torque (oz-in) | 16.7 |
| Bipolar Series RMS Current (A) | 0.67 |
| Bipolar Series RMS Voltage (V) | 6.44 |
| Bipolar Series Inductance Per Phase (mH) | 7.2 |
| Bipolar Series Resistance Per Phase (ohm) | 9.2 |
| Rotor Inertia (oz-in-sec2) | 0.00025 |
| # of Lead Wires | 4 |
| Shaft | Double |
| Weight (lbs) | 0.5 |
| Length (in) | 2.65 |
| Included Accessory | ENC-A5DN 400 Line Encoder, Single-Ended, No Index |
Interested in large quantity discount?
Product Information
The 11Y Series High Torque Stepper Motors come in a small package with high torque density. These High Torque Stepper Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, or the motors can be customized to fit your machine requirements. The standard 4 lead wire motors can be connected to allow the flexibility for your application. Anaheim Automation can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds.
See Accessories on this website for optional motor adders, such as encoders, cables, and connectors. See compatible drivers for the 11Y Series; MBC15081, MBC25081TB.
- NEMA 11 Frame Size
- 1.8° Step Angle
- IP50 Rated
- High Torque - Up to 17 oz-in
- High Step Accuracy and Resolution
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
.png)
