11YPG202S-LW4
| NEMA Size | 11 |
|---|---|
| Bipolar Torque (oz-in) | 13.2 |
| Bipolar Current (A) | 0.67 |
| Bipolar Voltage (V) | 4.76 |
| Bipolar Resistance (Ohm) | 6.8 |
| Bipolar Inductance (mH) | 4.9 |
| Rotor Inertia (oz-in-sec2) | 0.00017 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.54 |
| L2 Length (mm) | 44.5 |
Interested in large quantity discount?
Product Information

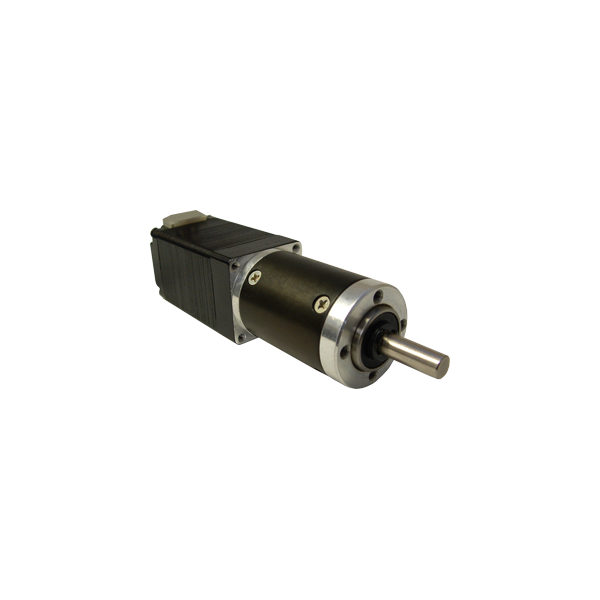

The 11YPG Series gearmotor incorporates a high-torque stepper motor and an economic planetary gearbox to offer you an exceptional value. This compact package can deliver a rated torque up to 228 oz-in. Gear ratios are available from 3.7 to 720. This gearmotor is ideal for applications that require high torque in a small package. The gearmotor can be customized to perfectly match your voltage, current, and maximum operating speed for maximum flexibility.
See Accessories on this website for optional motor adders, such as encoders, cables and connectors. For compatible drivers, consider popular models MBC15081, and MBC25081TB.
- Nema Size 11 Integrated Gearmotor
- Economy Planetary Gearbox
- High Rated Torque - Up to 228 oz-in
- Gear Ratios: 3.7 to 720
- 1.8° Step Angle
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
| Output Shaft of Gearbox | ||||||
|---|---|---|---|---|---|---|
| Gearbox Ratio | Exact Reduction Ratio | Rated Torque (oz-in) | Max Torque (oz-in) | Efficiency | "L1" Length (mm) | Weight (lbs) |
| Parameters/Gearbox RatioR3.7 | Exact Reduction Ratio3.71 | Rated Torque (oz-in)28 | Max Torque (oz-in)83 | Efficiency90% | "L1" Length (mm)31.5 | Weight (lbs)0.13 |
| Parameters/Gearbox RatioR5.2 | Exact Reduction Ratio5.18 | Rated Torque (oz-in)28 | Max Torque (oz-in)83 | Efficiency90% | "L1" Length (mm)31.5 | Weight (lbs)0.13 |
| Parameters/Gearbox RatioR14 | Exact Reduction Ratio13.76 | Rated Torque (oz-in)56 | Max Torque (oz-in)167 | Efficiency81% | "L1" Length (mm)40.0 | Weight (lbs)0.18 |
| Parameters/Gearbox RatioR19 | Exact Reduction Ratio19.22 | Rated Torque (oz-in)56 | Max Torque (oz-in)167 | Efficiency81% | "L1" Length (mm)40.0 | Weight (lbs)0.18 |
| Parameters/Gearbox RatioR27 | Exact Reduction Ratio26.83 | Rated Torque (oz-in)56 | Max Torque (oz-in)167 | Efficiency81% | "L1" Length (mm)40.0 | Weight (lbs)0.18 |
| Parameters/Gearbox RatioR51 | Exact Reduction Ratio51.06 | Rated Torque (oz-in)139 | Max Torque (oz-in)417 | Efficiency73% | "L1" Length (mm)48.5 | Weight (lbs)0.20 |
| Parameters/Gearbox RatioR71 | Exact Reduction Ratio71.30 | Rated Torque (oz-in)139 | Max Torque (oz-in)417 | Efficiency73% | "L1" Length (mm)48.5 | Weight (lbs)0.20 |
| Parameters/Gearbox RatioR100 | Exact Reduction Ratio99.55 | Rated Torque (oz-in)139 | Max Torque (oz-in)417 | Efficiency73% | "L1" Length (mm)48.5 | Weight (lbs)0.20 |
| Parameters/Gearbox RatioR139 | Exact Reduction Ratio138.99 | Rated Torque (oz-in)139 | Max Torque (oz-in)417 | Efficiency73% | "L1" Length (mm)48.5 | Weight (lbs)0.20 |
| Parameters/Gearbox RatioR189 | Exact Reduction Ratio189.45 | Rated Torque (oz-in)228 | Max Torque (oz-in)833 | Efficiency66% | "L1" Length (mm)57.5 | Weight (lbs)0.23 |
| Parameters/Gearbox RatioR264 | Exact Reduction Ratio264.52 | Rated Torque (oz-in)228 | Max Torque (oz-in)833 | Efficiency66% | "L1" Length (mm)57.5 | Weight (lbs)0.23 |
| Parameters/Gearbox RatioR369 | Exact Reduction Ratio369.32 | Rated Torque (oz-in)228 | Max Torque (oz-in)833 | Efficiency66% | "L1" Length (mm)57.5 | Weight (lbs)0.23 |
| Parameters/Gearbox RatioR516 | Exact Reduction Ratio515.66 | Rated Torque (oz-in)228 | Max Torque (oz-in)833 | Efficiency66% | "L1" Length (mm)57.5 | Weight (lbs)0.23 |
| Parameters/Gearbox RatioR720 | Exact Reduction Ratio719.98 | Rated Torque (oz-in)228 | Max Torque (oz-in)833 | Efficiency66% | "L1" Length (mm)57.5 | Weight (lbs)0.23 |
.png)
.png)
.png)
.png)
