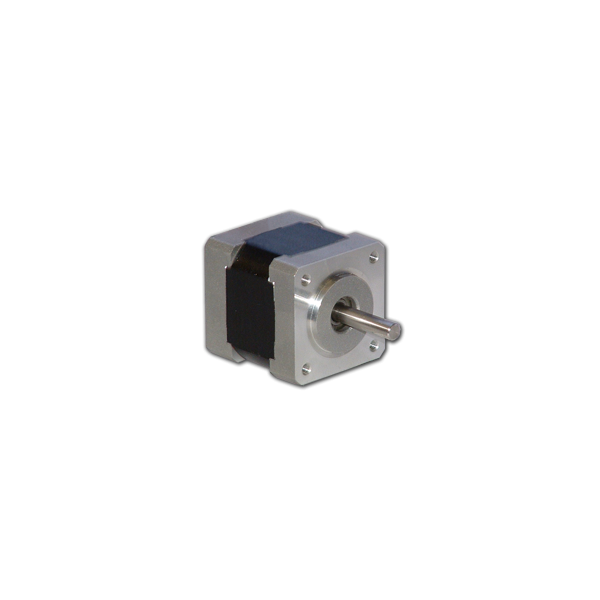

14Y105S-LW4
| NEMA Size | 14 |
|---|---|
| Bipolar Torque (oz-in) | 12.5 |
| Bipolar Series RMS Current (A) | 1.75 |
| Bipolar Series RMS Voltage (V) | 1.75 |
| Bipolar Series Inductance Per Phase (mH) | 1.2 |
| Bipolar Series Resistance Per Phase (ohm) | 1 |
| Rotor Inertia (oz-in-sec2) | 0.00016 |
| # of Lead Wires | 4 |
| Shaft | Single |
| Weight (lbs) | 0.33 |
| Length (in) | 1.1 |
Interested in large quantity discount?
Product Information
The 14Y Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors
are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line
of motor windings and stack lengths are available off-the-shelf, or the motors can be customized to fit your
machine requirements. The standard 4-lead motors are connected in the series configuration. We can also
customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds.
See
Accessories on this website for optional motor adders such as encoders, cables and connectors. See Compatible drivers for the 14Y series;
MBC15081,
MBC25081TB.
- NEMA 14 Frame Size
- 1.8° Step Angle
- IP50 Rated
- High Torque - Up to 19 oz-in
- High Step Accuracy and Resolution
- Low Vibration and Noise
- Shaft Flat as Standard
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
.png)
