14Y202S-LW4

14Y202S-LW4

14Y203S-LW4

14Y203S-LW4

14Y203D-LW4

Unit Price:
$69.00
Quantity Discount
  • Buy 10 for $65.76 each and save 5%
  • Buy 25 for $46.19 each and save 33%
  • Buy 50 for $43.47 each and save 37%
  • Buy 100 for $27.65 each and save 60%
Inventory:
30
In stock
More Information
NEMA Size 14
Bipolar Torque (oz-in) 19
Bipolar Series RMS Current (A) 1
Bipolar Series RMS Voltage (V) 4
Bipolar Series Inductance Per Phase (mH) 5.2
Bipolar Series Resistance Per Phase (ohm) 4
Rotor Inertia (oz-in-sec2) 0.0002
# of Lead Wires 4
Shaft Double
Weight (lbs) 0.4
Length (in) 1.42
Interested in large quantity discount?

Product Information

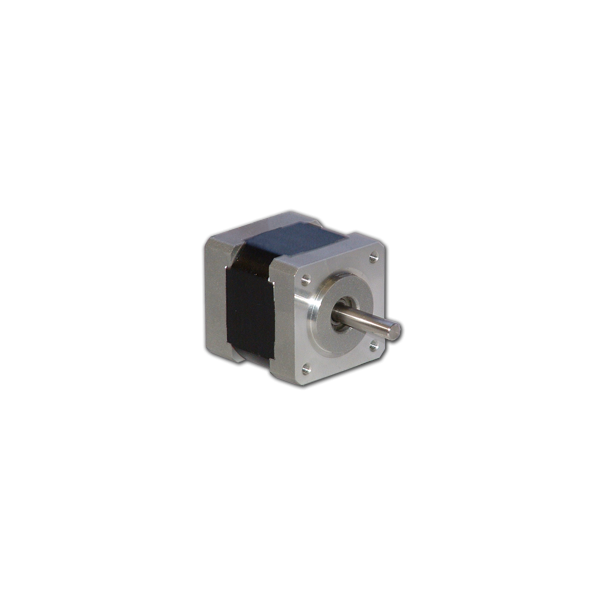

The 14Y Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, or the motors can be customized to fit your machine requirements. The standard 4-lead motors are connected in the series configuration. We can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds.
See Accessories on this website for optional motor adders such as encoders, cables and connectors. See Compatible drivers for the 14Y series; MBC15081, MBC25081TB.

  • NEMA 14 Frame Size
  • 1.8° Step Angle
  • IP50 Rated
  • High Torque - Up to 19 oz-in
  • High Step Accuracy and Resolution
  • Low Vibration and Noise
  • Shaft Flat as Standard
  • Can be Customized for
    • Winding Current
    • Shaft Options
    • Cables and Connectors
  • CE Certified and RoHS Compliant

Note 1: Dual Shaft Option Only

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Certified

RoHS Compliant
