15Y001D-LW4
| NEMA Size | 15 |
|---|---|
| Bipolar Torque (oz-in) | 9 |
| Bipolar Series RMS Current (A) | 0.4 |
| Bipolar Series RMS Voltage (V) | 2.64 |
| Bipolar Series Inductance Per Phase (mH) | 6 |
| Bipolar Series Resistance Per Phase (ohm) | 6.6 |
| Rotor Inertia (oz-in-sec2) | 0.00015 |
| # of Lead Wires | 4 |
| Shaft | Double |
| Weight (lbs) | 0.33 |
| Length (in) | 0.79 |
Interested in large quantity discount?
Product Information

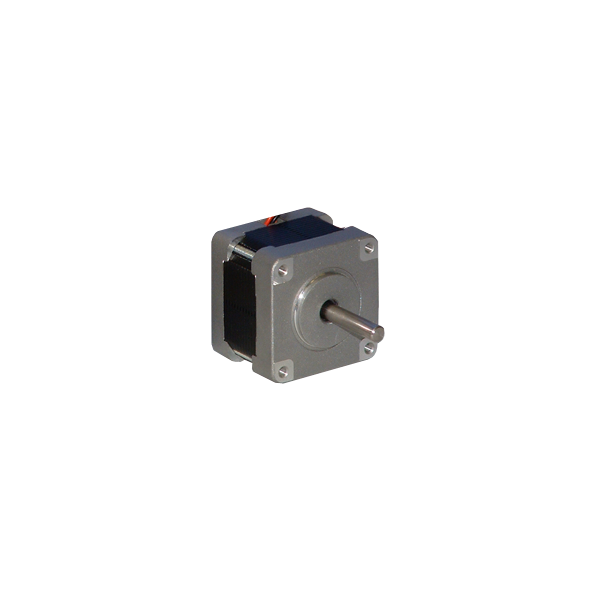

The 15Y Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, or the motors can be customized to fit your machine requirements. These motors come standard with 4 leads for wiring in bipolar series. We can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds. Other leadwire configurations are available upon request, as well as cable and connector options. Encoders and brakes can also be added to fit your custom application.
See
Accessories on this website for optional motor adders, such as encoders, cables and connectors. See Compatible drivers for the 15Y series;
MBC15081,
MBC25081TB.
- NEMA 15 Frame Size
- 1.8° Step Angle
- IP50 Rated
- High Torque - Up to 50 oz-in
- High Step Accuracy and Resolution
- Shaft Flat as Standard
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
.png)
.png)
