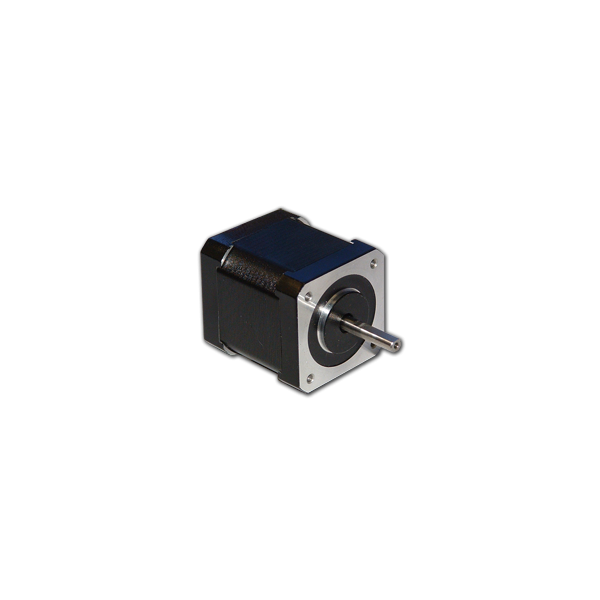

17Y408D-LW4
| NEMA Size | 17 |
|---|---|
| Bipolar Torque (oz-in) | 111 |
| Bipolar Series RMS Current (A) | 3 |
| Bipolar Series RMS Voltage (V) | 3.3 |
| Bipolar Series Inductance Per Phase (mH) | 2.4 |
| Bipolar Series Resistance Per Phase (ohm) | 1.1 |
| Rotor Inertia (oz-in-sec2) | 0.00144 |
| # of Lead Wires | 4 |
| Shaft | Double |
| Weight (lbs) | 1.1 |
| Length (in) | 2.36 |
Interested in large quantity discount?
Product Information
The 17Y Series High Torque Step Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, or the motors can be customized to fit your machine requirements. We can customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds for maximum flexibility.
See Accessories on this website for optional motor adders, such as encoders, cables and connectors. Gearbox options are also available. For compatible drivers, consider popular models MBC15081, MBC25081TB, or corresponding 17MD Integrated Motor/Driver or Driver Packs.
- NEMA 17 Frame Size
- 1.8° Step Angle (0.9° Also Available)
- IP50 Rated
- High Torque - Up to 111 oz-in
- High Step Accuracy and Resolution
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual shaft option only
.png)
.png)
.png)
.png)
.png)
.png)
