17Y65302S-CS4
| NEMA Size | 17 |
|---|---|
| Bipolar Torque (oz-in) | 61 |
| Bipolar Series RMS Current (A) | 0.85 |
| Bipolar Series RMS Voltage (V) | 5.7 |
| Bipolar Series Inductance Per Phase (mH) | 11 |
| Bipolar Series Resistance Per Phase (ohm) | 6.7 |
| Rotor Inertia (oz-in-sec2) | 0.00096 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.88 |
| Length (in) | 2.22 |
Interested in large quantity discount?
Product Information

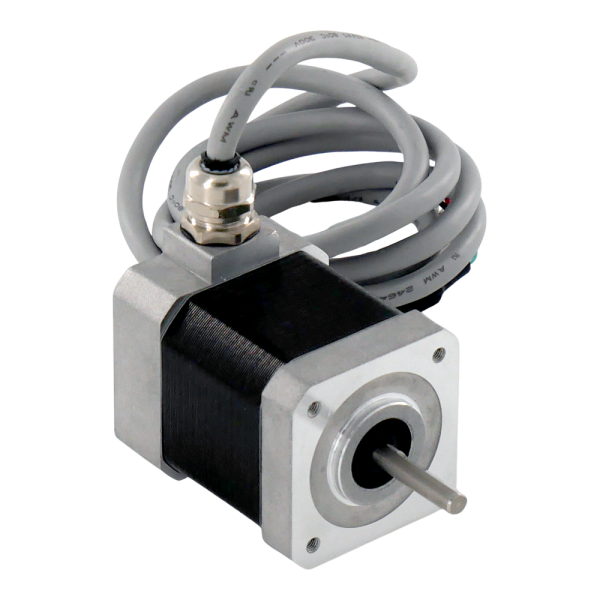

The 17Y65 Series High Torque Stepper Motors are designed to withstand splashdown, humid or damp environments, and water sprayback conditions. The IP65 sealed properties of this series ensure that moisture be kept out of the motors internal electronics. In addition, these compact motors provide the highest possible torque available in a sealed size 17 stepper. The 17Y65 series is an excellent choice for lab automation, biotech, and semiconductor automation equipment, just to name a few. There are four stack lengths available in order to meet your specific system requirements. Customized options are also available upon request.
See Accessories on this website for optional motor adders, such as encoders, cables and connectors. Gearbox options are also available. For compatible drivers, consider popular models MBC15081, MBC25081TB, or corresponding 17MD Integrated Motor/Driver or Driver Packs.
- NEMA 17 Frame Size
- Splash Proof IP65 Sealed Stepper Motor
- 1.8° Step Angle
- High Torque - Up to 61 oz-in
- High Step Accuracy and Resolution
- Low Vibration and Noise
- Can be Customized for
- IP65 Rating
- RoHS Compliant
- Shaft Options
- Cables and Connectors
