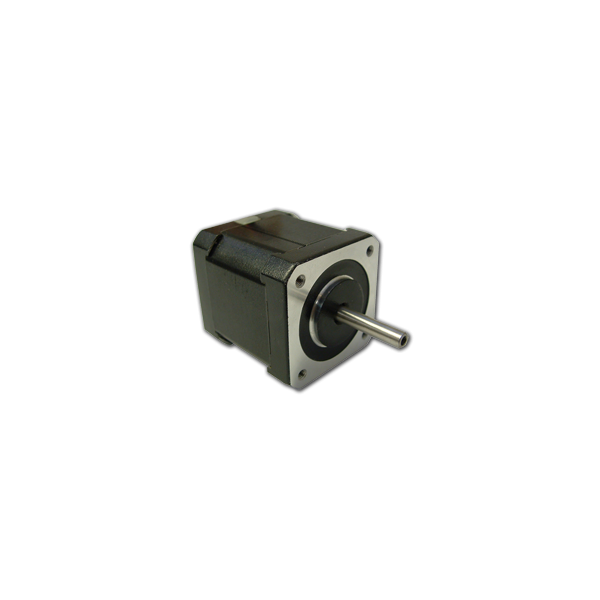

17Y9102S-LW6
| NEMA Size | 17 |
|---|---|
| Bipolar Torque (oz-in) | 31 |
| Bipolar Series RMS Current (A) | 0.67 |
| Bipolar Series RMS Voltage (V) | 6 |
| Bipolar Series Inductance Per Phase (mH) | 16 |
| Bipolar Series Resistance Per Phase (ohm) | 8 |
| Rotor Inertia (oz-in-sec2) | 0.0005 |
| # of Lead Wires | 6 |
| Shaft | Single |
| Weight (lbs) | 0.5 |
| Length (in) | 1.3 |
Interested in large quantity discount?
Product Information
The 17Y9 Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors have a 0.9° step angle making them higher precision than the typical 1.8° version. However, like the standard versions, motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf. We have both 4-Lead and 6-Lead motors that can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match voltage, current, and maximum torque at operating speeds to meet your requirements.
See Accessories on this website for optional motor adders, such as encoders, cables and connectors. Gearbox adders are also available, and can be found under Gearboxes.
- NEMA 17 Frame Size
- 0.9° Step Angle
- IP50 Rated
- High Torque - Up to 86 oz-in
- High Step Accuracy and Resolution
- Low Vibration and Noise
- Shaft Flat as Standard
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
