17YPG101S-LW4
| NEMA Size | 17 |
|---|---|
| Bipolar Torque (oz-in) | 28 |
| Bipolar Current (A) | 0.28 |
| Bipolar Voltage (V) | 12.04 |
| Bipolar Resistance (Ohm) | 43 |
| Bipolar Inductance (mH) | 48.7 |
| Rotor Inertia (oz-in-sec2) | 0.0005 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.86 |
| L2 Length (mm) | 34 |
Interested in large quantity discount?
Product Information

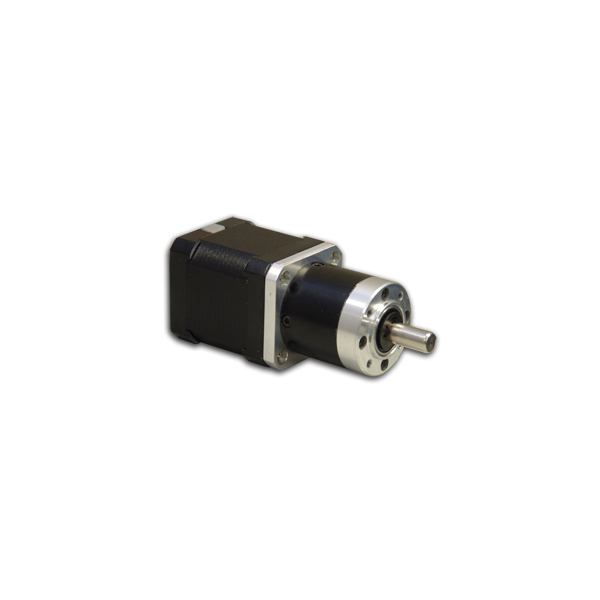

The 17YPG Series gearmotor incorporates a high-torque stepper motor and an economic planetary gearbox
to offer you an exceptional value. This compact package can deliver a rated torque up to 417 oz-in, with a wide
range of gear ratios and motor currents available. This gearmotor is ideal for applications that require high
torque in a small package. The backlash for the gearbox is less than 3 degrees and should not be used for
applications requiring high accuracy or precision. The gearmotor can be customized to perfectly match
your voltage, current, and maximum operating speed for maximum flexibility.
See
Accessories on this website for optional motor adders such as
encoders, cables and connectors. For compatible drivers, consider popular models
MBC15081 and MBC25081TB.
- NEMA Size 17 Integrated Gearmotor
- Economy Planetary Gearbox
- High Rated Torque - Up to 417 oz-in
- Gear Ratios from 3.7:1 to 720:1
- 1.8° Step Angle
- Backlash Less than 3°
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
| Output Shaft of Gearbox | ||||||
|---|---|---|---|---|---|---|
| Gearbox Ratio | Exact Reduction Ratio | Rated Torque (oz-in) | Max Torque (oz-in) | Efficiency | "L1" Length (mm) | Weight (lbs) |
| Parameters/Gearbox Ratio R3.7 | Exact Reduction Ratio 3.71 | Rated Torque (oz-in) 42 | Max Torque (oz-in) 139 | Efficiency 90% | "L1" Length (mm) 31.0 | Weight (lbs) 0.42 |
| Parameters/Gearbox Ratio R5.2 | Exact Reduction Ratio 5.18 | Rated Torque (oz-in) 42 | Max Torque (oz-in) 139 | Efficiency 90% | "L1" Length (mm) 31.0 | Weight (lbs) 0.42 |
| Parameters/Gearbox Ratio R14 | Exact Reduction Ratio 13.76 | Rated Torque (oz-in) 139 | Max Torque (oz-in) 417 | Efficiency 81% | "L1" Length (mm) 40.0 | Weight (lbs) 0.46 |
| Parameters/Gearbox Ratio R19 | Exact Reduction Ratio 19.22 | Rated Torque (oz-in) 139 | Max Torque (oz-in) 417 | Efficiency 81% | "L1" Length (mm) 40.0 | Weight (lbs) 0.46 |
| Parameters/Gearbox Ratio R27 | Exact Reduction Ratio 26.83 | Rated Torque (oz-in) 139 | Max Torque (oz-in) 417 | Efficiency 81% | "L1" Length (mm) 40.0 | Weight (lbs) 0.46 |
| Parameters/Gearbox Ratio R51 | Exact Reduction Ratio 51.06 | Rated Torque (oz-in) 278 | Max Torque (oz-in) 833 | Efficiency 73% | "L1" Length (mm) 50.0 | Weight (lbs) 0.63 |
| Parameters/Gearbox Ratio R71 | Exact Reduction Ratio 71.30 | Rated Torque (oz-in) 278 | Max Torque (oz-in) 833 | Efficiency 73% | "L1" Length (mm) 50.0 | Weight (lbs) 0.63 |
| Parameters/Gearbox Ratio R100 | Exact Reduction Ratio 99.55 | Rated Torque (oz-in) 278 | Max Torque (oz-in) 833 | Efficiency 73% | "L1" Length (mm) 50.0 | Weight (lbs) 0.63 |
| Parameters/Gearbox Ratio R139 | Exact Reduction Ratio 138.99 | Rated Torque (oz-in) 278 | Max Torque (oz-in) 833 | Efficiency 73% | "L1" Length (mm) 50.0 | Weight (lbs) 0.63 |
| Parameters/Gearbox Ratio R189 | Exact Reduction Ratio 189.45 | Rated Torque (oz-in) 417 | Max Torque (oz-in) 1250 | Efficiency 66% | "L1" Length (mm) 56.9 | Weight (lbs) 0.69 |
| Parameters/Gearbox Ratio R264 | Exact Reduction Ratio 264.52 | Rated Torque (oz-in) 417 | Max Torque (oz-in) 1250 | Efficiency 66% | "L1" Length (mm) 56.9 | Weight (lbs) 0.69 |
| Parameters/Gearbox Ratio R369 | Exact Reduction Ratio 369.32 | Rated Torque (oz-in) 417 | Max Torque (oz-in) 1250 | Efficiency 66% | "L1" Length (mm) 56.9 | Weight (lbs) 0.69 |
| Parameters/Gearbox Ratio R516 | Exact Reduction Ratio 515.66 | Rated Torque (oz-in) 417 | Max Torque (oz-in) 1250 | Efficiency 66% | "L1" Length (mm) 56.9 | Weight (lbs) 0.69 |
| Parameters/Gearbox Ratio R720 | Exact Reduction Ratio 719.98 | Rated Torque (oz-in) 417 | Max Torque (oz-in) 1250 | Efficiency 66% | "L1" Length (mm) 56.9 | Weight (lbs) 0.69 |
