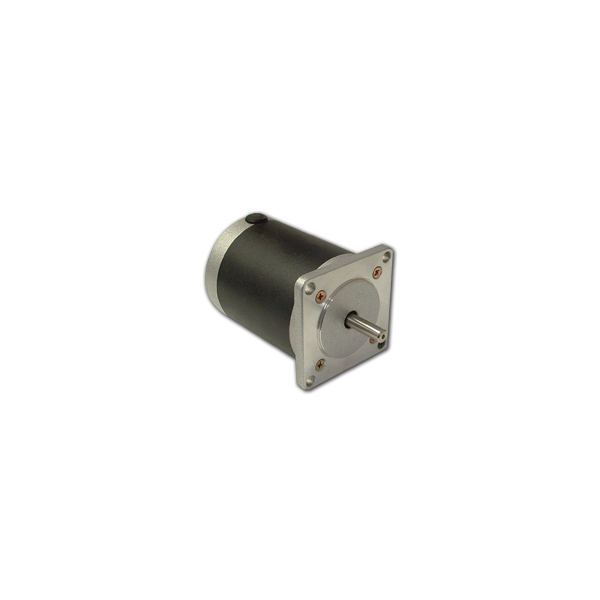

23W104S-LW8
| NEMA Size | 23 |
|---|---|
| Bipolar Torque (oz-in) | 100 |
| Bipolar RMS Current (A) | 1.4 |
| Bipolar RMS Voltage (V) | 4.2 |
| Bipolar Series Inductance Per Phase (mH) | 2.5 |
| Rotor Inertia (oz-in-sec2) | 0.00156 |
| # of Lead Wires | 8 |
| Shaft | Single |
| Weight (lbs) | 1.4 |
| Length (in) | 2 |
Interested in large quantity discount?
Product Information
Anaheim Automation's economical 23W Series Standard Stepper Motors are NEMA 23 frame, 4-phase hybrid, 1.8° motors. They are available in three stack lengths, with torque ratings from 40 to 174 ounce inches, with eight lead wires. Options include single or double-ended shaft.
- NEMA Size 23
- 1.8° Step Angle
- Torque - Up to 175 oz-in
- Best Selection for High-Speed Applications
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
