23W104S-LW8

23W104S-LW8

23W108S-LW8

23W108S-LW8

23W108D-LW8

1pc Price:
$59.00
Quantity Discount
  • Buy 10 for $46.89 each and save 21%
  • Buy 25 for $34.15 each and save 42%
  • Buy 50 for $33.66 each and save 43%
  • Buy 100 for $23.03 each and save 61%
Inventory:
6
More Information
NEMA Size 23
Bipolar Torque (oz-in) 100
Bipolar RMS Current (A) 3.2
Bipolar RMS Voltage (V) 2.1
Bipolar Series Inductance Per Phase (mH) 0.6
Rotor Inertia (oz-in-sec2) 0.00156
# of Lead Wires 8
Shaft Double
Weight (lbs) 1.4
Length (in) 2
Interested in large quantity discount?

Product Information

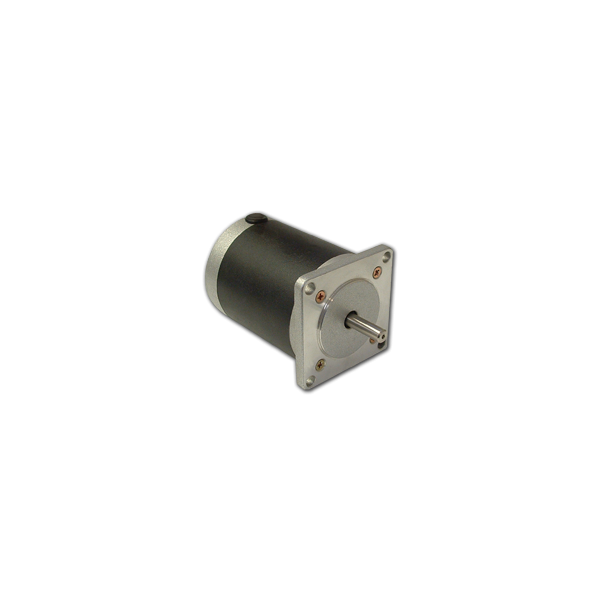

Anaheim Automation's economical 23W Series Standard Stepper Motors are NEMA 23 frame, 4-phase hybrid, 1.8° motors. They are available in three stack lengths, with torque ratings from 40 to 174 ounce inches, with eight lead wires. Options include single or double-ended shaft.

  • NEMA Size 23
  • 1.8° Step Angle
  • Torque - Up to 175 oz-in
  • Best Selection for High-Speed Applications
  • Can be Customized for
    • Winding Current
    • Shaft Options
    • Cables and Connectors
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Certified

RoHS Compliant
