23Y65206S-CS4
| NEMA Size | 23 |
|---|---|
| Bipolar Torque (oz-in) | 272 |
| Bipolar Series RMS Current (A) | 2.12 |
| Bipolar Series RMS Voltage (V) | 3.82 |
| Bipolar Series Inductance Per Phase (mH) | 7.5 |
| Bipolar Series Resistance Per Phase (ohm) | 1.8 |
| Rotor Inertia (oz-in-sec2) | 0.0068 |
| # of Lead Wires | 4 |
| Shaft | Single |
| Weight (lbs) | 2.2 |
| Length (in) | 3.15 |
Interested in large quantity discount?
Product Information

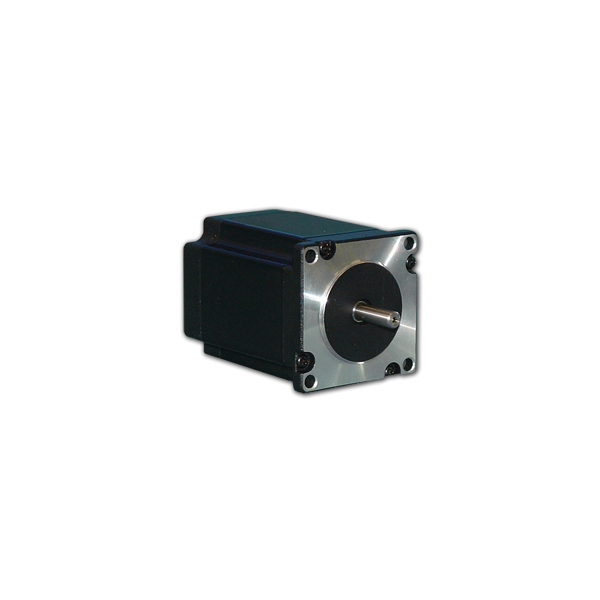

The 23Y65 Series High Torque Stepper Motors are designed to withstand splashdown, humid or damp environments, and water sprayback conditions. The IP65 sealed properties ensure that moisture be kept out of the motors internal windings. In addition, these motors provide the highest possible torque available in a sealed size 23 stepper. The 23Y65 series is an excellent choice for lab automation, biotech, and semiconductor automation equipment, just to name a few. Customized options are also available upon request.
See Accessories for optional motor adders such as encoders, cables, and connectors. For gearbox options, see GBPH series gearboxes. For compatible drivers, see MBC15081 and MBC25081TB, and DPE or DPY series Driver Packs.
- NEMA 23 Frame Size
- Splashproof IP65 Sealed Stepper Motor
- 1.8° Step Angle
- High Torque - Up to 262 oz-in
- High Step Accuracy and Resolution
- Low Vibration and Noise
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
.png)
.png)
