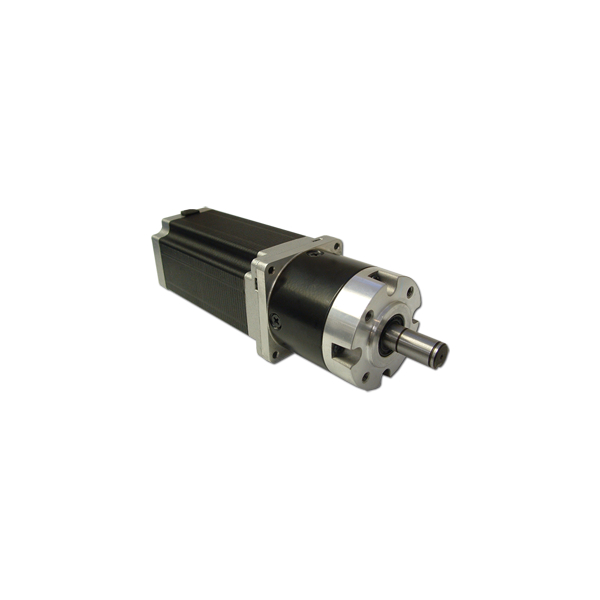

23YPG004S-LW8
| NEMA Size | 23 |
|---|---|
| Bipolar Torque (oz-in) | 76 |
| Bipolar Current (A) | 1.4 |
| Bipolar Voltage (V) | 4 |
| Bipolar Resistance (Ohm) | 2.8 |
| Bipolar Inductance (mH) | 1.4 |
| Rotor Inertia (oz-in-sec2) | 0.0017 |
| # of Lead Wires | 8 |
| Weight (lbs) | 1 |
| L2 Length (mm) | 41 |
Interested in large quantity discount?
Product Information
The 23YPG Series Gearmotor incorporates a High-Torque Stepper Motor and an economic Planetary Gearbox
to offer you an exceptional value. This compact package can deliver a rated torque up to 2,083 oz-in. This
gearmotor is ideal for applications that require high torque in a small package. The gearmotor can be
customized to perfectly match your voltage, current, and maximum operating speed for maximum flexibility.
See
Accessories on this website for optional motor adders such as
encoders, cables and connectors. For compatible drivers, consider popular models
MBC15081, MBC25081TB, or MBC05641.
- NEMA Size 23 Integrated Gearmotor
- Economy Planetary Gearbox
- High Rated Torque - Up to 2,083 oz-in
- 1.8° Step Angle
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
| Output Shaft of Gearbox | ||||||
|---|---|---|---|---|---|---|
| Gearbox Ratio | Exact Reduction Ratio | Rated Torque (oz-in) | Max Torque (oz-in) | Efficiency | "L1" Length (mm) | Weight (lbs) |
| Parameters/Gearbox Ratio R3.6 | Exact Reduction Ratio 3.6 | Rated Torque (oz-in) 212 | Max Torque (oz-in) 637 | Efficiency 90% | "L1" Length (mm) 47 | Weight (lbs) 1.46 |
| Parameters/Gearbox Ratio R4.3 | Exact Reduction Ratio 4.25 | Rated Torque (oz-in) 212 | Max Torque (oz-in) 637 | Efficiency 90% | "L1" Length (mm) 47 | Weight (lbs) 1.46 |
| Parameters/Gearbox Ratio R13 | Exact Reduction Ratio 12.96 | Rated Torque (oz-in) 708 | Max Torque (oz-in) 2124 | Efficiency 81% | "L1" Length (mm) 47 | Weight (lbs) 1.46 |
| Parameters/Gearbox Ratio R15 | Exact Reduction Ratio 15.30 | Rated Torque (oz-in) 708 | Max Torque (oz-in) 2124 | Efficiency 81% | "L1" Length (mm) 47 | Weight (lbs) 1.46 |
| Parameters/Gearbox Ratio R18 | Exact Reduction Ratio 18.06 | Rated Torque (oz-in) 708 | Max Torque (oz-in) 2124 | Efficiency 81% | "L1" Length (mm) 47 | Weight (lbs) 1.46 |
| Parameters/Gearbox Ratio R47 | Exact Reduction Ratio 46.66 | Rated Torque (oz-in) 2266 | Max Torque (oz-in) 4166 | Efficiency 73% | "L1" Length (mm) 70 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R55 | Exact Reduction Ratio 55.08 | Rated Torque (oz-in) 2266 | Max Torque (oz-in) 4166 | Efficiency 73% | "L1" Length (mm) 70 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R65 | Exact Reduction Ratio 65.03 | Rated Torque (oz-in) 2266 | Max Torque (oz-in) 4166 | Efficiency 73% | "L1" Length (mm) 70 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R77 | Exact Reduction Ratio 76.77 | Rated Torque (oz-in) 2266 | Max Torque (oz-in) 4166 | Efficiency 73% | "L1" Length (mm) 70 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R168 | Exact Reduction Ratio 167.96 | Rated Torque (oz-in) 2083 | Max Torque (oz-in) 6250 | Efficiency 66% | "L1" Length (mm) 90 | Weight (lbs) 2.42 |
| Parameters/Gearbox Ratio R198 | Exact Reduction Ratio 198.29 | Rated Torque (oz-in) 2083 | Max Torque (oz-in) 6250 | Efficiency 66% | "L1" Length (mm) 90 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R234 | Exact Reduction Ratio 234.09 | Rated Torque (oz-in) 2083 | Max Torque (oz-in) 6250 | Efficiency 66% | "L1" Length (mm) 90 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R276 | Exact Reduction Ratio 276.36 | Rated Torque (oz-in) 2083 | Max Torque (oz-in) 6250 | Efficiency 66% | "L1" Length (mm) 90 | Weight (lbs) 2.03 |
| Parameters/Gearbox Ratio R326 | Exact Reduction Ratio 326.25 | Rated Torque (oz-in) 2083 | Max Torque (oz-in) 6250 | Efficiency 66% | "L1" Length (mm) 90 | Weight (lbs) 2.03 |
