KNC-SRV-SMC40S-0010-30MAK-5DSU
| Rated Torque (oz-in) | 45 |
|---|---|
| Rated Power (Watts) | 100 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 3942 |
| Rated Current (Arms) | 3.2 |
| Voltage | 24-70 VDC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.00047 |
| Torque Constant KT (oz-in/A) | 15.6 |
| Resistance (ohms) | 1.5 |
| Inductance (mH) | 1.9 |
| Length (mm) | 96.6 |
| Weight (lbs) | 1.27 |
Interested in large quantity discount?
Product Information

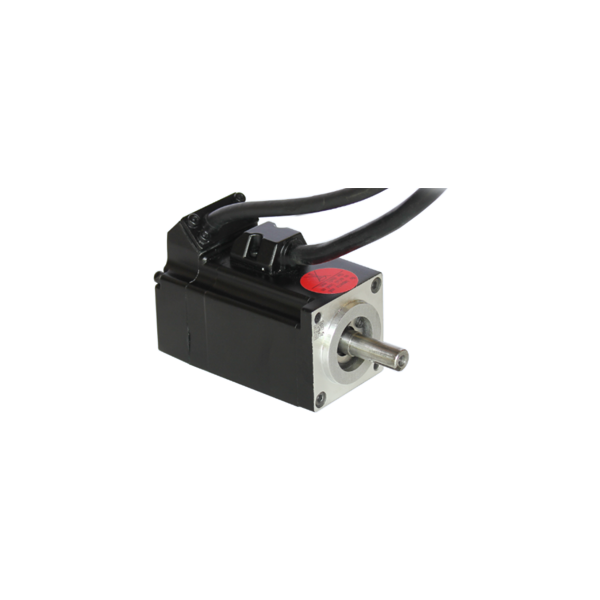

With a 40mm square flange size, the KNC-SRV-SMC40S-0010-30MAK-5DSU Servo Motor offers a low-cost solution for motion control applications requiring position and speed control.The 16-bit single-turn Magnetic Encoder allows for better cushioning ability and a higher cost-performance ratio. These Servo Motors have Class F Insulation, the highest insulation class available. These motors operate quietly, maintaining reliability and stability even in high-temperature environments. These Servo Motors boast peak torque values up to 135 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and have a rated torque of 45 oz-in.
- 24-70VDC Servo Motor
- 100W Power Rating
- Rated Torque of 45 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 3942 RPM
- Magnetic Encoder
- IP65 for Body, IP54 Shaft Seal
- CE Certified
