KNC-SRV-SMC40S-0010-30MBK-5DSU

1pc Price:
$260.00
Quantity Discount
  • Buy 10 for $251.93 each and save 3%
  • Buy 25 for $250.67 each and save 4%
  • Buy 50 for $233.14 each and save 10%
  • Buy 100 for $229.85 each and save 12%
Inventory:
More Information
Rated Torque (oz-in) 45
Rated Power (Watts) 100
Rated Speed (RPM) 3000
Max Speed (rpm) 3942
Rated Current (Arms) 3.2
Voltage 24-70 VDC
Brake Yes
Inertia (oz-in-sec2) 0.00065
Torque Constant KT (oz-in/A) 15.6
Resistance (ohms) 1.5
Inductance (mH) 1.9
Length (mm) 126.6
Weight (lbs) 1.7
Lead Time Typ 40 Days
Interested in large quantity discount?

Product Information

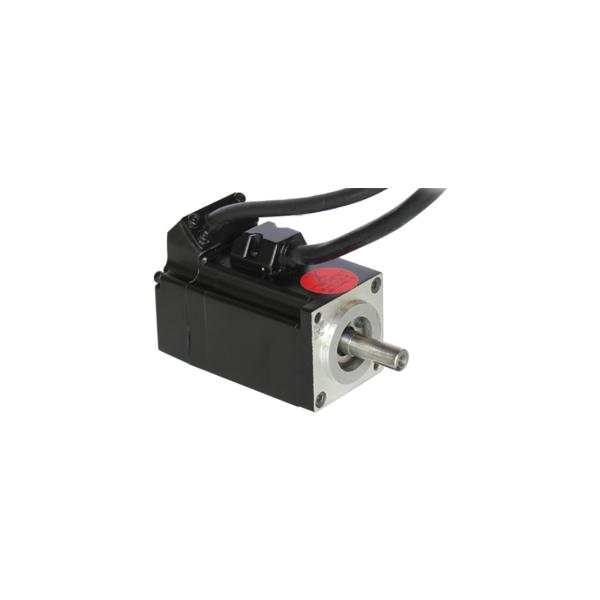

With a 40mm square frame size, the KNC-SRV-SMC40S-0010-30MBK-5DSU Servo Motor offers a low-cost solution for motion control applications requiring position and speed control. The 16-bit single-turn Magnetic Encoder allows for better cushioning ability and a higher cost-performance ratio. These Servo Motors are equipped with a brake and have Class F Insulation, the highest insulation class available on the market. They operate quietly, maintaining reliability and stability even in high-temperature environments. These Servo Motors boast peak torque values up to 135 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and have a rated torque of 45 oz-in.

  • 24-70VDC Servo Motor with Brake
  • 100W Power Rating
  • Rated Torque of 45 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 3942 RPM
  • Magnetic Encoder
  • IP65 for Body, IP54 Shaft Seal
  • CE Certified

User Manual (PDF)

Spec Sheet (PDF)

.STEP File (.zip File)
