KNC-SRV-SMC40S-0010-30MBK-5DSU

KNC-SRV-SMC40S-0010-30MBK-5DSU

KNC-SRV-SMC60S-0020-30MAK-3DSU

KNC-SRV-SMC60S-0020-30MAK-3DSU

KNC-SRV-SMH40S-0010-30AAK-4LKH

1pc Price:
$204.00
Quantity Discount
  • Buy 10 for $198.05 each and save 3%
  • Buy 25 for $196.11 each and save 4%
  • Buy 50 for $183.63 each and save 10%
  • Buy 100 for $159.97 each and save 22%
Inventory:
More Information
Rated Torque (oz-in) 45
Rated Power (Watts) 100
Rated Speed (RPM) 3000
Max Speed (rpm) 6500
Rated Current (Arms) 1.4
Voltage 220 VAC
Brake No
Inertia (oz-in-sec2) 0.00084
Torque Constant KT (oz-in/A) 37.5
Resistance (ohms) 5.53
Inductance (mH) 14
Length (mm) 110
Weight (lbs) 2.2
Lead Time Typ 40 Days
Interested in large quantity discount?

Product Information

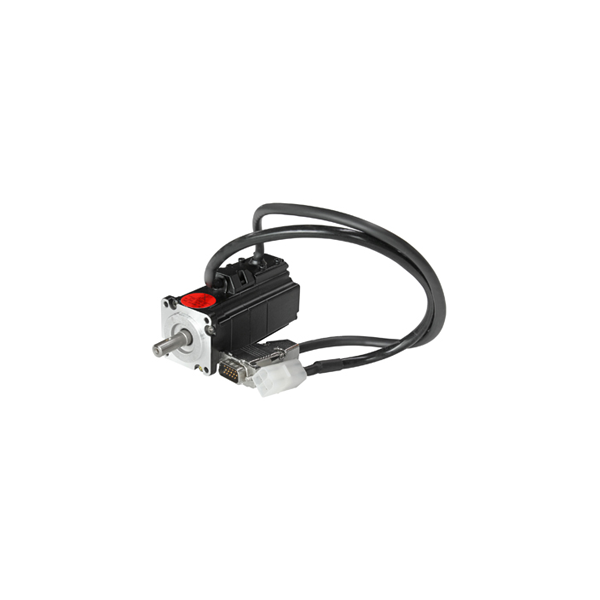

The KNC-SRV-SMH40S-0010-30AAK-4LKH Servo Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. Available in a 40mm square flange size, these motors boast peak torque values up to 136 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and come equipped with a 2,500 PPR incremental encoder.

  • 220VAC Servo Motor
  • 100W Power Rating
  • Rated Torque of 45 oz-in
  • Maximum Speed of 6500 RPM
  • Incremental Encoder
  • IP65 for Body, IP54 Shaft Seal
  • CE Certified

Spec Sheet (PDF)
