KNC-SRV-SMC60S-0020-30MAK-3DSU

Unit Price:
$173.00
Quantity Discount
  • Buy 10 for $172.53 each and save 0%
  • Buy 25 for $160.74 each and save 7%
  • Buy 50 for $146.48 each and save 15%
  • Buy 100 for $142.29 each and save 18%
Inventory:
0
Out of Stock
More Information
Rated Torque (oz-in) 91
Rated Power (Watts) 200
Rated Speed (RPM) 3000
Max Speed (rpm) 3500
Rated Current (Arms) 5.1
Voltage 24-70 VDC
Brake No
Inertia (oz-in-sec2) 0.00303
Torque Constant KT (oz-in/A) 18.7
Resistance (ohms) 0.889
Inductance (mH) 1.51
Length (mm) 91
Weight (lbs) 2.65
Interested in large quantity discount?

Product Information

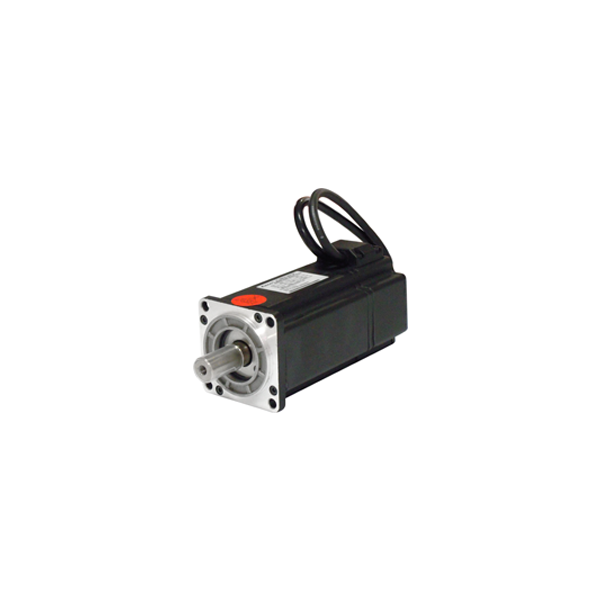

KNC-SRV-SMC60S-0020-30MAK-3DSU Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in a 60mm square flange size. A 16-bit single-turn Magnetic Encoder allows for better cushioning ability and a higher cost-performance ratio. These quiet motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate reliably even in high-temperature environments.  This Servo Motor boasts peak torque up to 272 oz-in, provides excellent dynamic response, allows for 3 times the overload capacity, and has a rated torque of 91 oz-in.

  • 24-70VDC Servo Motor
  • 200W Power Rating
  • Rated Torque of 91 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 3500 RPM
  • Magnetic Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified
