KNC-SRV-SMC60S-0020-30MBK-3DSU
| Rated Torque (oz-in) | 91 |
|---|---|
| Rated Power (Watts) | 200 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 3500 |
| Rated Current (Arms) | 5.1 |
| Voltage | 24-70 VDC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.00309 |
| Torque Constant KT (oz-in/A) | 18.7 |
| Resistance (ohms) | 0.889 |
| Inductance (mH) | 1.51 |
| Length (mm) | 121 |
| Weight (lbs) | 3.53 |
Interested in large quantity discount?
Product Information

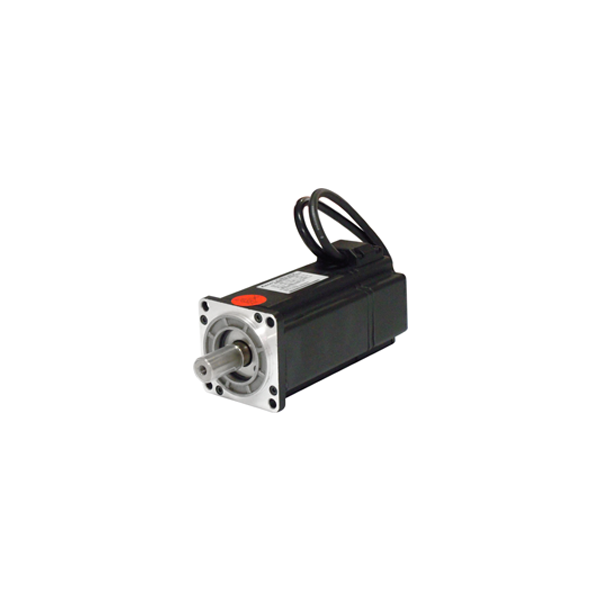

KNC-SRV-SMC60S-0020-30MBK-3DSU Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in a 60mm square flange size and are equipped with a brake. A 16-Bit Single-Turn Magnetic Encoder allows for better cushioning ability and higher cost-performance ratio. These quiet motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate reliably even in high-temperature environments. These Servo Motors boast peak torque values up to 272 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 91 oz-in.
- 24-70VDC Servo Motor with Brake
- 200W Power Rating
- Rated Torque of 91 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 3500 RPM
- Magnetic Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
.png)
.png)
.png)
.png)
