KNC-SRV-SMC60S-0020-30MBK-3DSU

KNC-SRV-SMC60S-0020-30MBK-3DSU

KNC-SRV-SMC60S-0040-30MAK-3DSU

KNC-SRV-SMC60S-0040-30MAK-3DSU

KNC-SRV-SMC60S-0020-30ABK-3LKH

Unit Price:
$385.00
Quantity Discount
  • Buy 10 for $370.61 each and save 4%
  • Buy 25 for $348.17 each and save 10%
  • Buy 50 for $323.22 each and save 16%
  • Buy 100 for $299.70 each and save 22%
Inventory:
5
In stock
More Information
Rated Torque (oz-in) 90
Rated Power (Watts) 200
Rated Speed (RPM) 3000
Max Speed (rpm) 6000
Rated Current (Arms) 1.4
Voltage 220 VAC
Brake Yes
Inertia (oz-in-sec2) 0.00308
Torque Constant KT (oz-in/A) 0.48
Resistance (ohms) 11.2
Inductance (mH) 20.9
Length (mm) 150
Weight (lbs) 3.52
Interested in large quantity discount?

Product Information

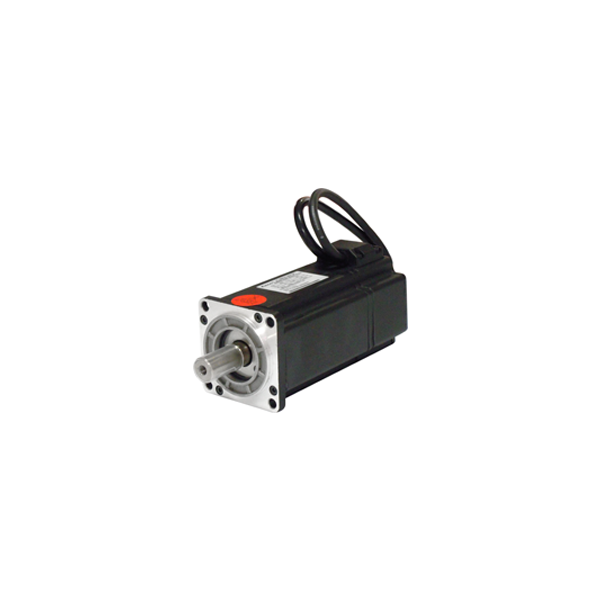

Our KNC-SRV-SMC60S-0020-30ABK-3LKH Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in a 60mm square flange size and are equipped with a brake. A 2500 PPR Incremental Encoder allows for better cushioning ability and a higher cost-performance ratio. These Servo Motors have Insulation Class F, the best Insulation Class on the market. They operate quietly with high reliability and stability in high-temperature environments. The KNC-SRV-SMC60S-0020-30ABK-3LKH boasts peak torque up to 271 oz-in, provides excellent dynamic response, allows for 3 times the overload capacity, and has a rated torque of 90 oz-in.

  • 220VAC Servo Motor with Brake
  • 200W Power Rating
  • Rated Torque of 90 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 6000 RPM
  • Incremental Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified

User Manual (PDF)

Spec Sheet (PDF)
