ACW015-070-080-110-1500
| Frame Size (mm) | 70 |
|---|---|
| Rated Torque (oz-in) | 17.3 |
| Rated Speed (RPM) | 1500 |
| Starting Torque (oz-in) | 15.6 |
| Frequency (Hz) | 60 |
| Input Voltage (VAC) | 110 |
| Current (A) | 0.4 |
| Output Power (W) | 15 |
| Capacitor (uF / V) | 5/250 |
| Mounting Type | None Available |
| Shaft Diameter (mm) | 6 |
| Weight (lbs) | 2.42 |
| Single or Three Phase | Single |
Interested in large quantity discount?
Product Information

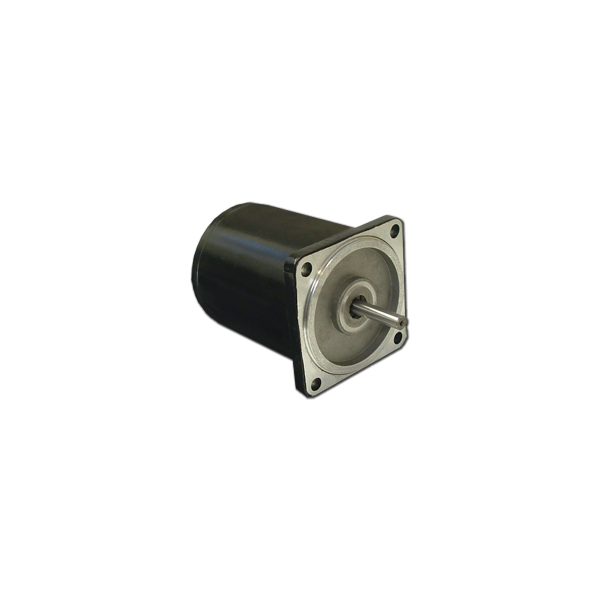

Anaheim Automation's single-phase AC motors come in a variety of starting torques, rated torques and current ratings. The ACW015-070-080 AC motor has a starting torque of 15.6 oz-in. It can run at up to 1,500 RPM with single-phase 110 VAC, 60 Hz. The ACW015-070-080 offers torque ranges up to 16 oz-in. Other models are also available with a gearbox to provide even higher torques. Custom options for the single-phase AC motor line include: optimizing the maximum speed, torque, current, voltage, cabling, wiring, connectors, and shaft modifications.
Note: ACW Induction Motors are LTSOH (Limited to Stock on Hand).
- Single-Phase AC Motor
- Torque up to 16 oz-in
- 70mm Motor Diameter
- 15 Watts of Power
- Can be Customized for:
- Cables and Connectors
- Winding Current
- Shaft Options
- CE Certified and RoHS Compliant
