ACW025-080-085-110-1500
| Frame Size (mm) | 80 |
|---|---|
| Rated Torque (oz-in) | 27.6 |
| Rated Speed (RPM) | 1500 |
| Starting Torque (oz-in) | 15.6 |
| Frequency (Hz) | 60 |
| Input Voltage (VAC) | 110 |
| Current (A) | 0.7 |
| Output Power (W) | 25 |
| Capacitor (uF / V) | 6/250 |
| Shaft Diameter (mm) | 8 |
| Weight (lbs) | 3.64 |
| Single or Three Phase | Single |
Interested in large quantity discount?
Product Information

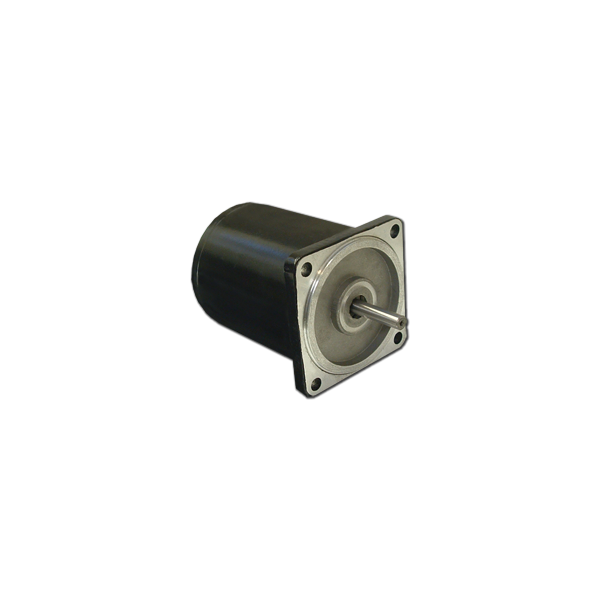

Anaheim Automation's single phase AC motors come in a variety of starting torques, rated torques and current. The ACW025-080-085 AC motor has a starting torque of 15.6 oz-in. They run at up to 1500 RPM with single phase 110 VAC, 60 Hz. The ACW025-080-085 offers torque ranges up to 16 oz-in. Other models are also available a gearbox to provide even higher torques. Custom options for the Single Phase AC motor line include optimizing the maximum speed, torque, current, voltage, cabling, wiring, connectors, and shaft modifications.
Note: ACW Induction Motors are LTSOH (Limited to Stock on Hand).
- Single Phase AC Motor
- Torque up to 16 oz-in
- 80mm Motor Diameter
- 25 Watts of Power
- Can be Customized for
- Cables and Connectors
- Winding Current
- Shaft Options
- CE Certified and RoHS Compliant
