ACW060-090-125-110-1550
| Frame Size (mm) | 90 |
|---|---|
| Rated Torque (oz-in) | 62.4 |
| Rated Speed (RPM) | 1550 |
| Starting Torque (oz-in) | 63.72 |
| Frequency (Hz) | 60 |
| Input Voltage (VAC) | 110 |
| Current (A) | 1.1 |
| Output Power (W) | 60 |
| Capacitor (uF / V) | 18/250 |
| Shaft Diameter (mm) | 12 |
| Weight (lbs) | 5.93 |
| Single or Three Phase | Single |
Interested in large quantity discount?
Product Information

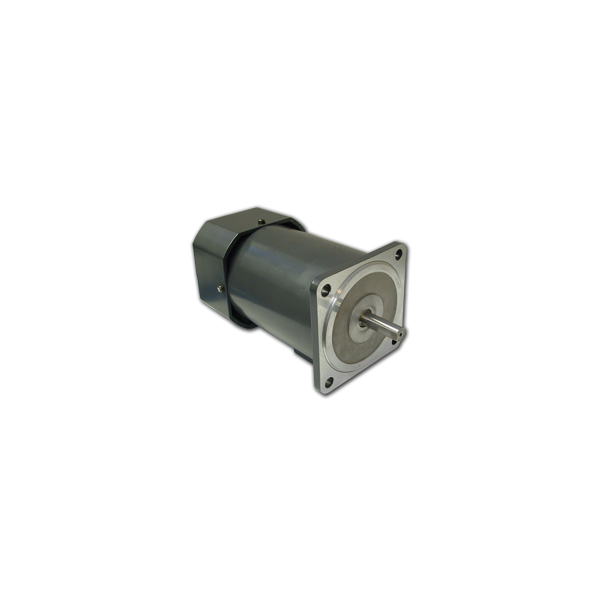

Anaheim Automation's single phase AC motors come in a variety of starting torques, rated torques and current. The ACW060-090-125 AC motor has a starting torque of 63.72 oz-in. They run at up to 1550 RPM with single phase 110 VAC, 60 Hz. The ACW060-090-125 offers torque ranges up to 64 oz-in. Other models are also available with a gearbox to provide even higher torques. Custom options for the Single Phase AC motor line include optimizing the maximum speed, torque, current, voltage, cabling, wiring, connectors, and shaft modifications.
Note: ACW Induction Motors are LTSOH (Limited to Stock on Hand).
- Single Phase AC Motor
- Torque up to 64 oz-in
- 90mm Motor Diameter
- 60 Watts of Power
- Can be Customized for
- Cables and Connectors
- Winding Current
- Shaft Options
- CE Certified and RoHS Compliant
