ACW120-100-192-110-1550

1pc Price:
$150.00
Inventory:
1
More Information
Frame Size (mm) 100
Rated Torque (oz-in) 104.79
Rated Speed (RPM) 1550
Starting Torque (oz-in) 101.96
Frequency (Hz) 60
Input Voltage (VAC) 110
Current (A) 2.1
Output Power (W) 120
Capacitor (uF / V) 30/250
Shaft Diameter (mm) 11
Weight (lbs) 10.67
Single or Three Phase Single
Interested in large quantity discount?

Product Information

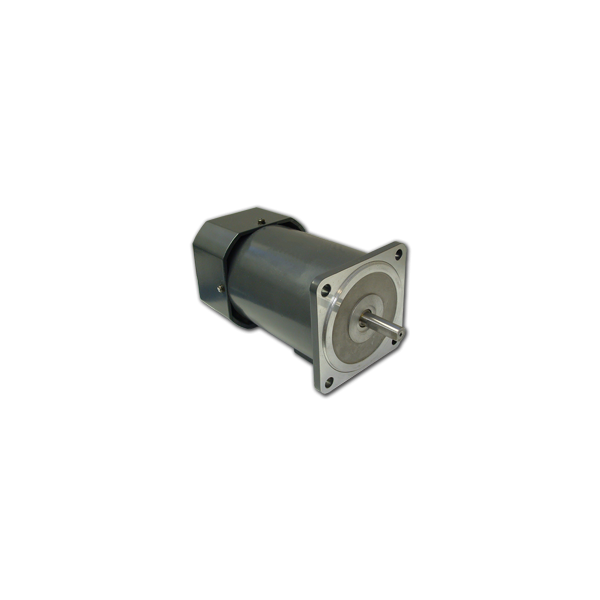

Anaheim Automation's single phase AC motors come in a variety of starting torques, rated torques and current. The ACW120-100-192 AC motor has a starting torque of 101.96 oz-in. They run at up to 1550 RPM with single phase 110 VAC, 60 Hz. The ACW120-100-192 offers torque ranges up to 104.79 oz-in. Other models are also available with gear ratios to provide even higher torques. Custom options for the Single Phase AC motor line include optimizing the maximum speed, torque, current, voltage, cabling, wiring, connectors, and shaft modifications.

Note: ACW Induction Motors are LTSOH (Limited to Stock on Hand).

  • Single Phase AC Motor
  • Torque up to 104.79 oz-in
  • 100mm Motor Diameter
  • 120 Watts of Power
  • Can be Customized for
    • Cables and Connectors
    • Winding Current
    • Shaft Options
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)
