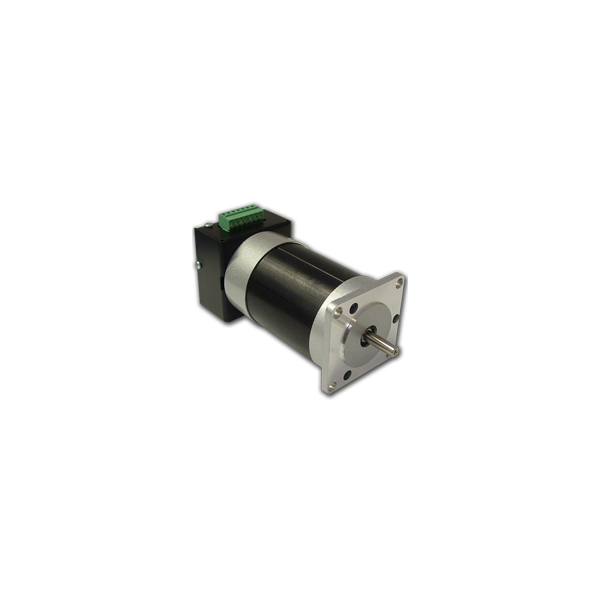

BLWS23MDC1S-24V-4000
| Motor Frame | 2.3 in. Square |
|---|---|
| Length (in) | 2.97 |
| Rated Power (W) | 23 |
| Rated Torque (oz-in) | 8 |
| Peak Torque (oz-in) | 25 |
| Rated Speed (RPM) | 4000 |
| Torque Constant (oz-in/A) | 5 |
Interested in large quantity discount?
Product Information
The BLWS23MDC Series is a compact microcontroller-based Programmable Brushless DC Motor Controller with Hall Sensor feedback for accurate speed measurement. With the two parts combined into one casing, the need to wire up the motor has been eliminated. It provides flexible, independent control of a Brushless DC motor from computers, or any machine controller with a serial port. The easy-to-use Windows software, BMC100, can be used to directly control the BLWS23MDC for Real Time Motion through serial communication and/or change parameters such as speed, direction, brake setting and speed control constants. The controller has two modes through which it can control the speed of the motor: Analog Mode and Digital Mode. In Digital Mode, the user directly sets the desired speed. The Analog Mode provides standalone functionality to the controller with a dynamic DC voltage input (0-5V) to control the speed of the motor.
Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.
- Programmable PI Controller
- 2-Quadrant Operation
- Hall Sensor Feedback
- 0-5VDC Analog Input Speed Control
- Short Circuit Protection
- Requires 24VDC
- Run/Stop Input
- TTL-CMOS Compatible Inputs
- Motor Frame: 2.3" Square (Similar to NEMA23)
.png)
.png)
.png)
.png)
