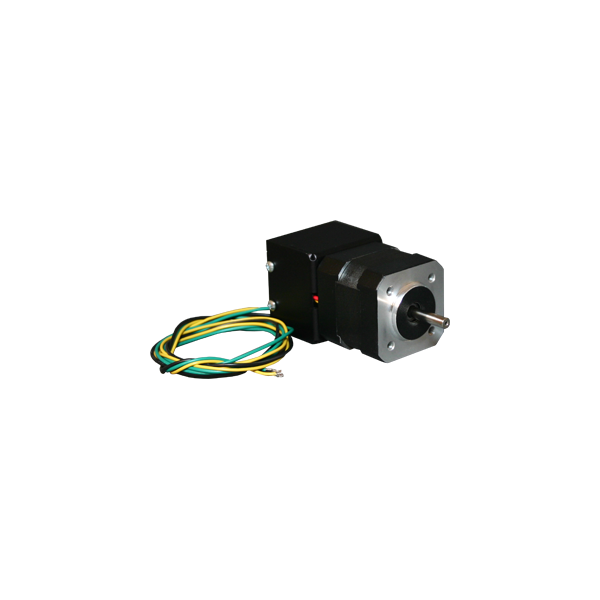

BLY17MDA1S-24V-4000-2W

The BLY17MDA-2W Series is a compact construction that implements a DC Brushless controller and a DC Brushless motor in one streamline package in a 2 wire system, only requiring a power and ground input. With the two part combined into one casing, the need to wire the motor has been eliminated. The DC Brushless controller operates off 24VDC. The high-speed DC Brushless motor can operate at 4000RPM, a no-load speed of 6200RPM, can generate up to 35 oz-in of continuous torque, and deliver as much as 104W, with the BLY17MDA4 -2W offering. The direction of the motor can be preset by the direction control input. A high (24VDC) input causes the motor to turn in the CW direction, while a low (0VDC) at this input causes the motor to turn in the CCW direction.

Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.

• Requires 24VDC Input
• Open Loop Velocity Mode
• 4000 RPM Rated Speed Range
• 6200 RPM No-Load Speed Range
• 2-Quadrant Operation
• Requires 24VDC
• Short Circuit Protection
• Maximum Current Limit Setting at 10.0 Amps Peak
• Direction Input
• Compact Size
• Motor Frame: 1.7" Square
