BLY17MDA2S-24V-4000-2W

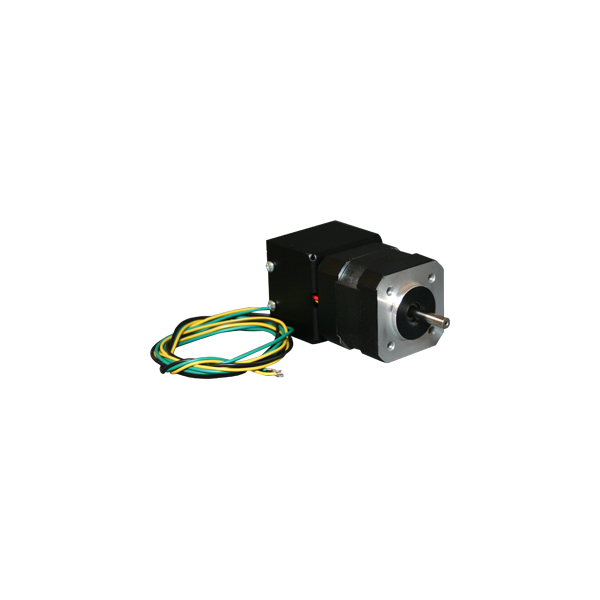

The BLY17MDA-2W Series is a compact construction that implements a DC Brushless controller and a DC Brushless motor in one streamline package in a 2 wire system, only requiring a power and ground input. With the two part combined into one casing, the need to wire the motor has been eliminated. The DC Brushless controller operates off 24VDC. The high-speed DC Brushless motor can operate at 4000RPM, a no-load speed of 6200RPM, can generate up to 35 oz-in of continuous torque, and deliver as much as 104W, with the BLY17MDA4 -2W offering. The direction of the motor can be preset by the direction control input. A high (24VDC) input causes the motor to turn in the CW direction, while a low (0VDC) at this input causes the motor to turn in the CCW direction.

Note: Need to know the RPM of your motor? Check out our new SPDRO-4 speed readout module.

Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.

• Requires 24VDC Input
• Open Loop Velocity Mode
• 4000 RPM Rated Speed Range
• 6200 RPM No-Load Speed Range
• 2-Quadrant Operation
• Requires 24VDC
• Short Circuit Protection
• Maximum Current Limit Setting at 10.0 Amps Peak
• Direction Input
• Compact Size
• Motor Frame: 1.7" Square
