BLY17MDA2S-24V-4000-2W

BLY17MDA2S-24V-4000-2W

BLY17MDA4S-24V-4000-2W

BLY17MDA4S-24V-4000-2W

BLY17MDA3S-24V-4000-2W

1pc Price:
$222.00
Quantity Discount
  • Buy 10 for $215.75 each and save 3%
  • Buy 25 for $174.19 each and save 22%
  • Buy 50 for $171.59 each and save 23%
  • Buy 100 for $122.74 each and save 45%
Inventory:
1
More Information
Motor Frame 1.7 in. Square
Length (in) 4.575
Rated Power (W) 78
Rated Torque (oz-in) 26
Peak Torque (oz-in) 80
Rated Speed (RPM) 4000
Torque Constant (oz-in/A) 5.4
Interested in large quantity discount?

Product Information

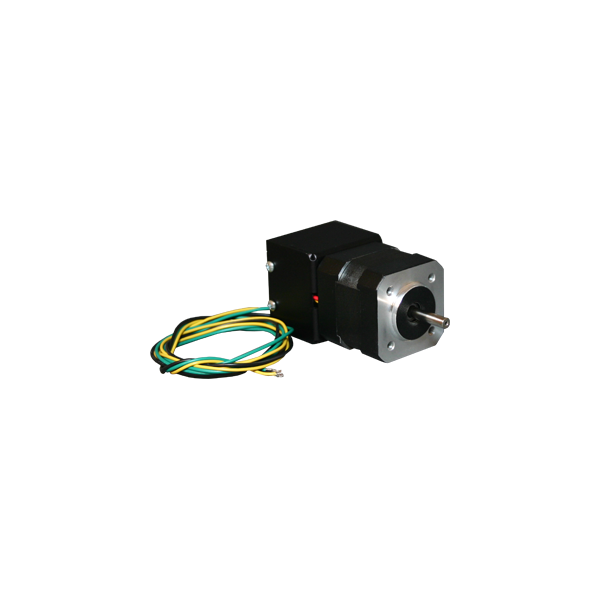

The BLY17MDA-2W Series is a compact construction that implements a DC Brushless controller and a DC Brushless motor in one streamline package in a 2 wire system, only requiring a power and ground input. With the two part combined into one casing, the need to wire the motor has been eliminated. The DC Brushless controller operates off 24VDC. The high-speed DC Brushless motor can operate at 4000RPM, a no-load speed of 6200RPM, can generate up to 35 oz-in of continuous torque, and deliver as much as 104W, with the BLY17MDA4 -2W offering. The direction of the motor can be preset by the direction control input. A high (24VDC) input causes the motor to turn in the CW direction, while a low (0VDC) at this input causes the motor to turn in the CCW direction.

Note: Need to know the RPM of your motor? Check out our new SPDRO-4 speed readout module.

Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.

  • Requires 24VDC Input
  • Open Loop Velocity Mode
  • 4000 RPM Rated Speed Range
  • 6200 RPM No-Load Speed Range
  • 2-Quadrant Operation
  • Requires 24VDC
  • Short Circuit Protection
  • Maximum Current Limit Setting at 10.0 Amps Peak
  • Direction Input
  • Compact Size
  • Motor Frame: 1.7" Square

3D PDF

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)
