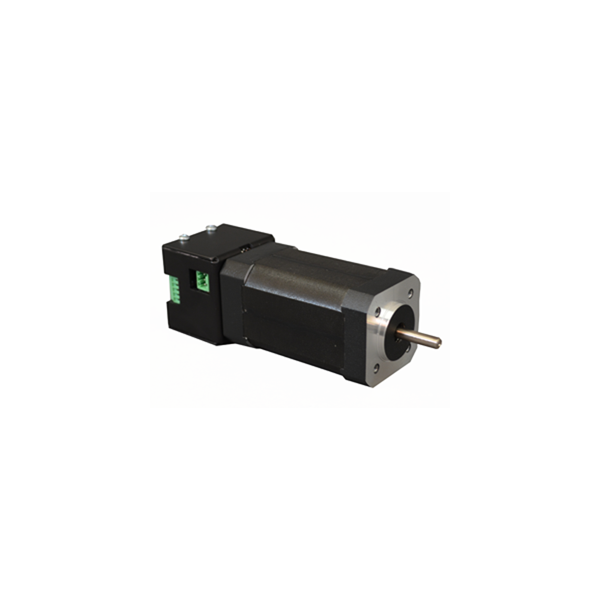

BLY17MDC1S-24V-4000
| Motor Frame | 1.7 in. Square |
|---|---|
| Length (in) | 2.97 |
| Rated Power (W) | 26 |
| Rated Torque (oz-in) | 8.9 |
| Peak Torque (oz-in) | 27 |
| Rated Speed (RPM) | 4000 |
| Torque Constant (oz-in/A) | 4.96 |
Interested in large quantity discount?
Product Information
The BLY17MDC provides accurate control of motor speed, direction, coast and brake for a Brushless DC Motor. It is embedded with a Proportional-Integrator (PI) controller. Proportional and Integrator Constants, Kp and Ki, can be programmed using the BMC100 Windows Software or in Direct Mode. The controller has two modes through which it can control the speed of the motor: Analog Mode and Digital Mode. In Digital Mode, the user directly sets the desired speed. The Analog Mode provides standalone functionality to the controller with a dynamic DC voltage input (0-5V) to control the speed of the motor.
- Programmable PI Controller
- 2-Quadrant Operation
- Hall Sensor Feedback
- 0-5VDC Analog Input Speed Control
- Short Circuit Protection
- Requires 24VDC
- Run/Stop Input
- TTL-CMOS Compatible Inputs
- Motor Frame: 1.7" Square
