DPS32PG1
| # of Axes | 1 |
|---|---|
| Current Range (A) | 0.5 - 3.5 |
| Steps per Revolution | 200 - 400 |
| Smart Features | Pulse Generator |
| Input Voltage | 105-125/210-250 VAC |
| Internal Power Supply (Watts) | 100 |
| Recommended Power Supply | Integrated |
Interested in large quantity discount?
Product Information

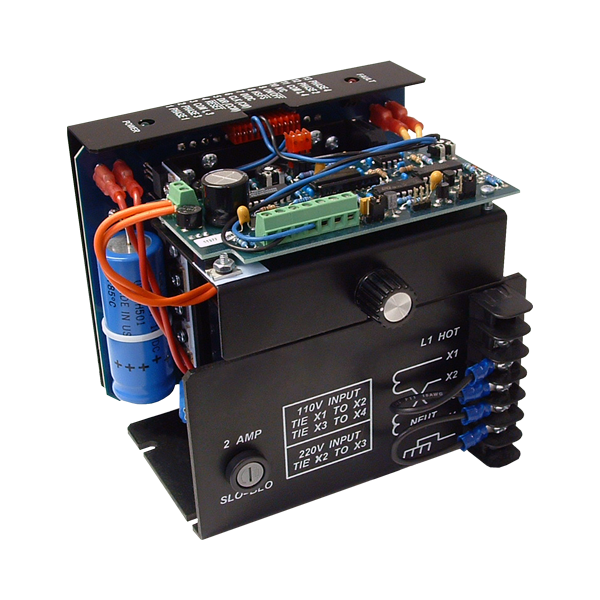

The DPS32PG1 step motor driver pack is designed to operate 6-lead and 8-lead step motors rated from 0.5 to 3.5 amps/phase (unipolar rating). This driver pack features a unipolar bilevel (or dual voltage) drive technique with short/open circuit protection (with a fault LED), and includes the AA2876 ramping pulse generator board with a +5VDC power supply output. A bilevel drive technique provides outstanding motor performance. The DPS32PG1's open frame construction is ideal for OEM because of its cost- effective design.
- Bilevel Step Motor Driver Pack with Linear Ramping Pulse Generator
- 100 Watt Transformer
- 110/200 V Operation
- Short Circuit Protection, Open Motor Protection, Fault LED
- 5Amps/Phase Operating Current
- 3.5 Amps/Phase Output Current
- Unipolar Operation
- Half-Step and Full-Step Operation
- Motor On/Off Input
- Adjustable Base and Max Speeds
- No RFI or EMI Problems
- TTL/CMOS Compatible Inputs
- +5VDC Power Supply Output
