MBC10P31

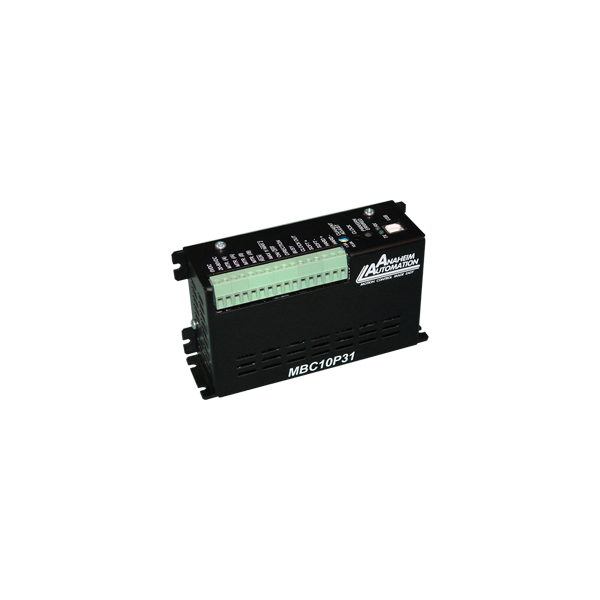

The MBC10P31 is a low-cost single axis step motor driver integrated with a programmable pulse generator. The MBC10P31 microstep driver/pulse generator has an output current capability of 1.5A minimum to 10.0A maximum (peak rating). The MBC10P31 driver operates with a DC voltage of 20VDC to 80VDC. The MBC10P31’s internal controller can store two different programmable motion profiles. The MBC10P31 also has directional soft and hard limit switch inputs, a busy output, and a clock output that can be used for daisy chaining drivers together. The MBC10P31 driver features direction control and motor current on/ off capabilities. The “Reduce Current Enabled” feature automatically reduces motor current to 50% of the set value. The driver has built-in features to indicate power on (green LED), running (yellow LED), and error conditions (red LED). The MBC10P31 has a fixed step resolution of 2000 steps/revolution for a 1.8° stepper motor. The bipolar drive configuration handles 4, 6, and 8 lead step motors and is also equipped with over current protection. The MBC10P31 communicates via USB communication. The easy to use Windows software, SMPG-SMSI Software, is used to directly set up the two different motion profiles.

• Single-Axis Bipolar Driver with Pulse Generator
• Output Current: 10.0A Peak
• 2000 Steps/Revolution
• On-Board Programmable Pulse Generator with 2 Motion Profiles
• Pulses from 1Hz to 50kHz
• Directional Soft and Hard Limit Switch Inputs
• Pulse Generator Clock Output
• Busy Output
• Motor On/Off Input and Automatic Current Reduction
• Short Circuit Protection
