ENC-M9I-0360-0-4mm-LD-CON-E

Unit Price:
$78.00
Quantity Discount
  • Buy 10 for $76.25 each and save 2%
  • Buy 25 for $74.19 each and save 5%
  • Buy 50 for $73.20 each and save 6%
  • Buy 100 for $72.24 each and save 7%
Inventory:
129
In stock
More Information
Cycles Per Rev (CPR) 360
Commutation 0 Pole
Bore Size 4mm
Index Channel Yes
Cover Cover Extension
Electrical Line Driver
Interested in large quantity discount?

Product Information

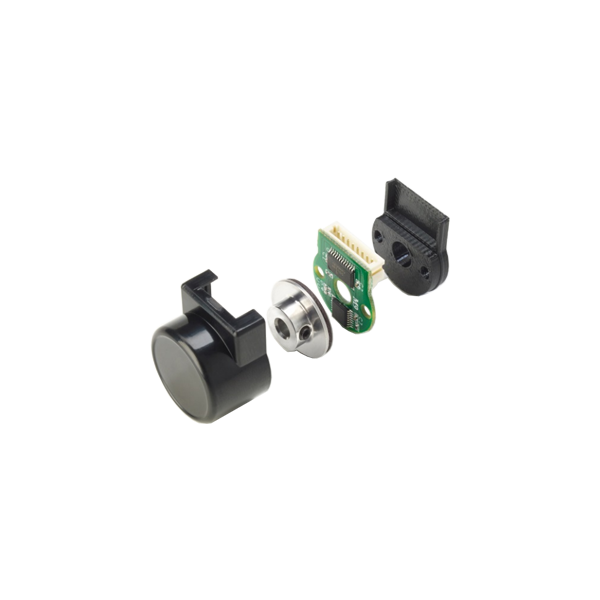

The M9 Miniature Modular Magnetic Encoder is the smallest off-axis modular magnetic encoder on the market. It offers reliable performance at an economical price with resolutions up to 1000 CPR (Cycles Per Revolution). The M9 includes electromagnetic interference (EMI) protection circuitry and a differential magnetic sensor circuit design that protects it from interfering magnetic fields. Its 800KHz data rate allows up to 12,000 RPM at 1000 CPR. The magnetic technology provides operational advantages over conventional optical encoders in high-temperature, shock and vibration environments.

  • High accuracy - less than 10 arc minutes
  • No moving parts
  • Gap between sensor and target
    is highly resistant to liquid or solid
  • Customizable as a replacement part
    or to fit new designs
  • 0.9 inch diameter modular unit

.STEP File (.RAR File)

Assembly Instructions

Spec Sheet (PDF)
