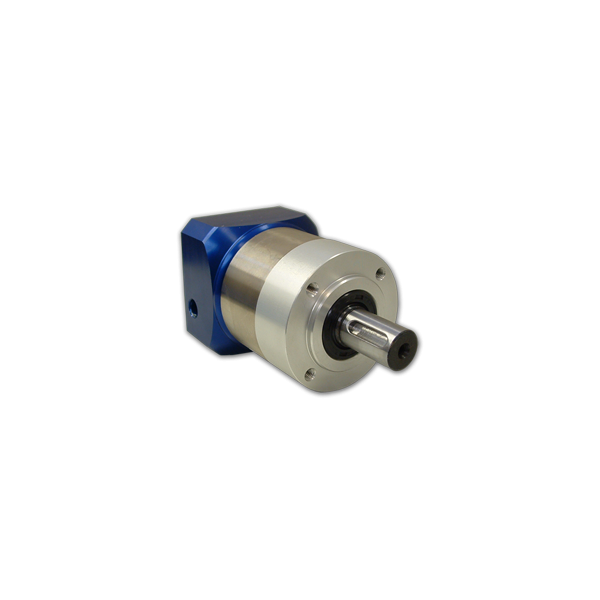

GBPH-0601-CS-007
| Gear Ratio (X:1) | 7 |
|---|---|
| Rated Output Torque (in-lbs) | 389 |
| Max Output Torque (in-lbs) | 1195 |
| Backlash Maximum (arc-min) | 20 |
| Rated Speed (RPM) | 5000 |
| Stages | 1 |
| Efficiency (%) | 97 |
| Torsional Rigidity (Nm/arcmin) | 7 |
| L2 Length (mm) | 29 |
| Weight (lbs) | 2.45 |
Interested in large quantity discount?
Product Information
The GBPH-060x-CS Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed for motion control, automation, and robotic applications requiring moderate backlash and stiffness. This Planetary Gearbox will match your servo or stepping motor and is ideal for NEMA 23 motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Precision Planetary Gearboxes
- In-Line Planetary Servo Gearheads
- High Quality
- Low Backlash Planetary Gearboxes
- Gear Ratios from 3:1 to 100:1
- High Durability
- Operating Temperature of -15° to 90°C

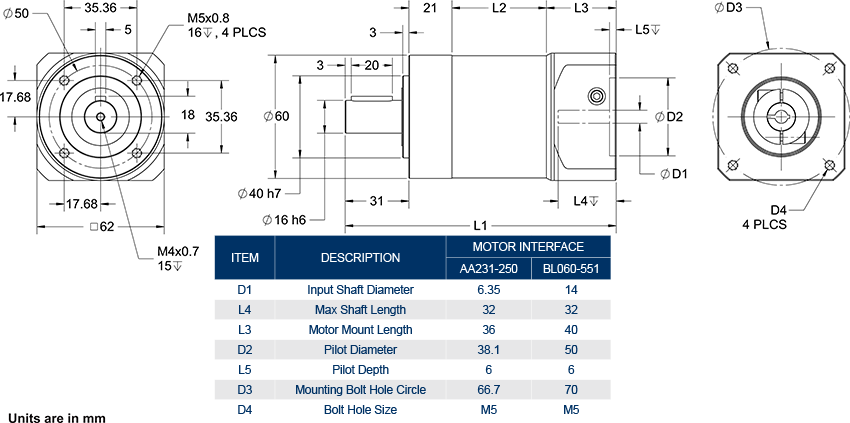

.png)
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:
| Motor Interface / Suffix | Anaheim Stepper Series | Anaheim BLDC Series | Anaheim Servo Series |
| AA231-250 | 23Y | BLWS23 | - |
| BLK24-551 | - | BLK24 | - |
| SMH60-551 | - | - | SMC60, SMH60, SMS60 |
.png)
