GBPH-0902-CS-070

GBPH-0902-CS-070

GBPH-0903-CS-036

GBPH-0903-CS-036

GBPH-0902-CS-100

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 100
Rated Output Torque (in-lbs) 1469
Max Output Torque (in-lbs) 4408
Backlash Maximum (arc-min) 12
Rated Speed (RPM) 4000
Stages 2
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 11
L2 Length (mm) 52
Weight (lbs) 9.92
Interested in large quantity discount?

Product Information

The GBPH-090x-CS Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This Planetary Gearbox will match your servo or stepping motor and is ideal for NEMA 34 motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications.

Gearbox Ordering Information
To determine a complete gearbox part number, please select an item from Table 1 based on the given gearbox specifications. Second, select an item from Table 2 based on the standard compatible Anaheim Automation stepper, servo, or brushless motors listed.

  • Backlash as Low as 11 arc-min
  • Gear Ratios from 3 to 1000
  • Available in 1, 2, 3 and 4 Stage Models
  • Patented Precision Clamping System
  • Lifetime Lubrication
  • High Durability

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

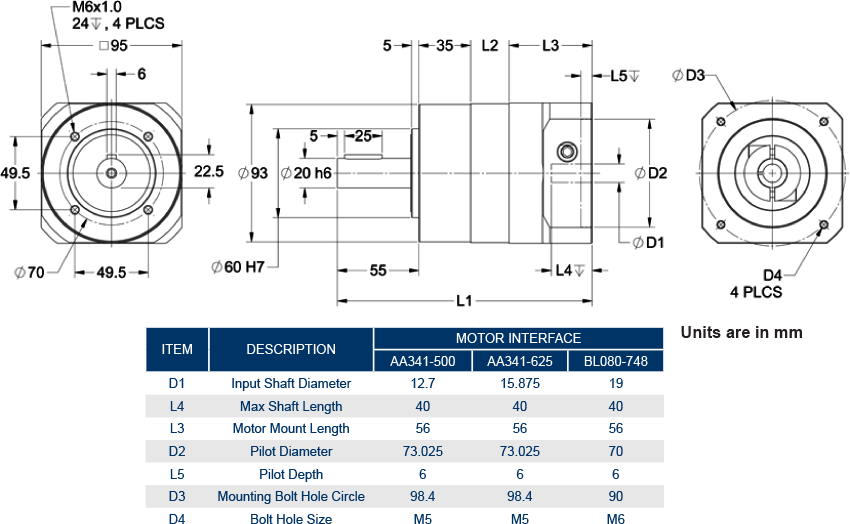

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA341-500

34Y1, 34K1, 34N1,

34Y2, 34K2, 34N2

BLY34 -
AA341-625 34Y3, 34K3, 34N3 - -
BLK32-748 - BLK32 -
SMH80-748 - -

SMC80S-0075, SMC80S-0100,

SMH80S-0075, SMH80S-0100

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
