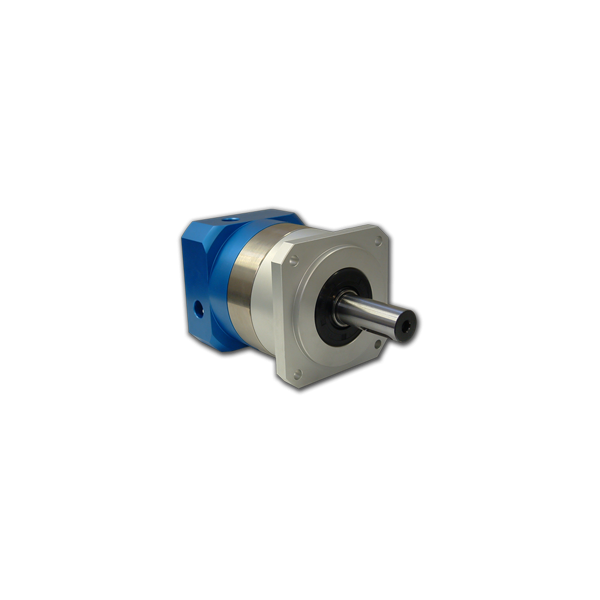

GBPH-0902-NS-025

GBPH-0902-NS-025

GBPH-0902-NS-030

GBPH-0902-NS-030

GBPH-0902-NS-028

1pc Price:
As low as $522.00
Quantity Discount
Inventory:
More Information
Gear Ratio (X:1) 28
Rated Output Torque (in-lbs) 1469
Max Output Torque (in-lbs) 4408
Backlash Maximum (arc-min) 16
Rated Speed (RPM) 4000
Stages 2
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 11

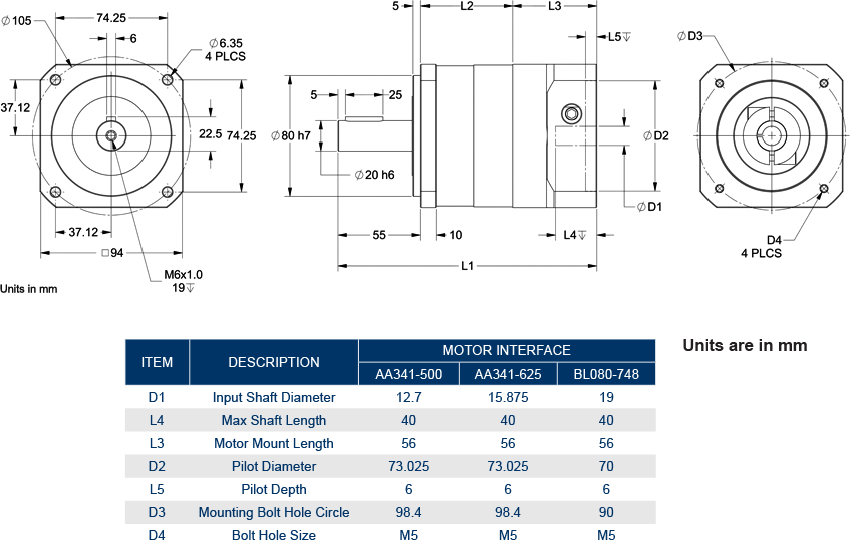

L2 Length (mm) 87
Weight (lbs) 9.92
Interested in large quantity discount?

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA341-500

34Y1, 34K1, 34N1,

34Y2, 34K2, 34N2

BLY34 -
AA341-625 34Y3, 34K3, 34N3 - -
BLK32-748 - BLK32 -
SMH80-748 - -

SMC80S-0075, SMC80S-0100,

SMH80S-0075, SMH80S-0100
