GBPH-0902-NS-100

GBPH-0902-NS-100

GBPH-0903-NS-045

GBPH-0903-NS-045

GBPH-0903-NS-036

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 36
Rated Output Torque (in-lbs) 1487
Max Output Torque (in-lbs) 4460
Backlash Maximum (arc-min) 16
Rated Speed (RPM) 4000
Stages 3
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 11
L2 Length (mm) 113
Weight (lbs) 12.13
Interested in large quantity discount?

Product Information

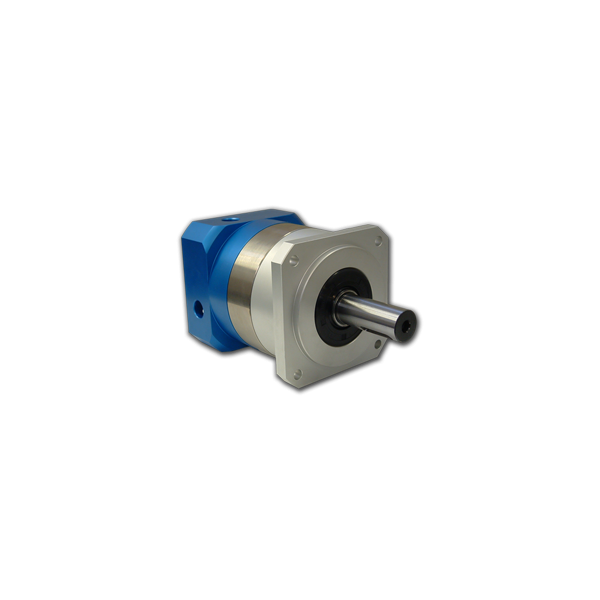

The GBPH-090x-NS Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed for motion control, automation, and robotic applications requiring moderate backlash and stiffness. This Planetary Gearbox will match your servo or stepping motor and is ideal for NEMA 34 motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Backlash as Low as 11 arc-min
  • Gear Ratios from 3 to 1000
  • Available in 1, 2, 3 and 4 Stage Models
  • Patented Precision Clamping System
  • Lifetime Lubrication
  • High Durability
  • Operating Temperature of -15° to 90°C

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

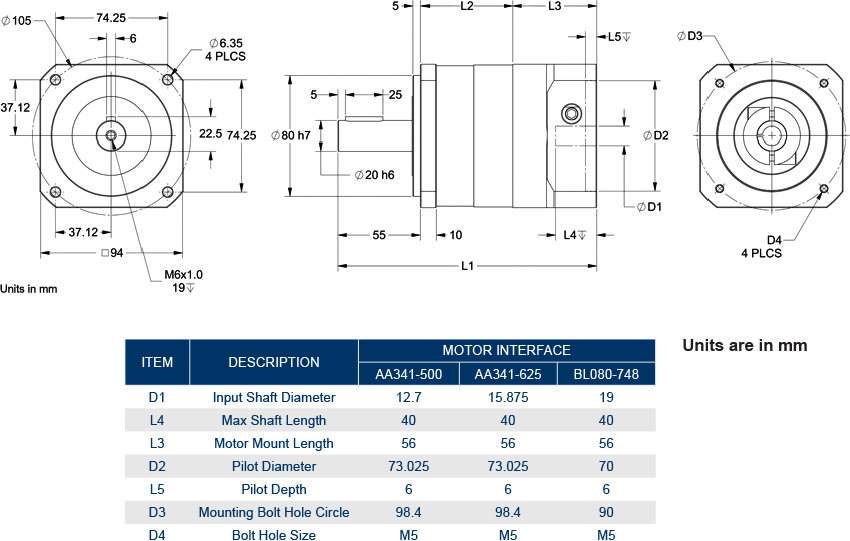

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA341-500

34Y1, 34K1, 34N1,

34Y2, 34K2, 34N2

BLY34 -
AA341-625 34Y3, 34K3, 34N3 - -
BLK32-748 - BLK32 -
SMH80-748 - -

SMC80S-0075, SMC80S-0100,

SMH80S-0075, SMH80S-0100

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
