GBPH-1202-NP-015

GBPH-1202-NP-015

GBPH-1202-NP-020

GBPH-1202-NP-020

GBPH-1202-NP-016

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 16
Rated Output Torque (in-lbs) 2708
Max Output Torque (in-lbs) 8125
Backlash Maximum (arc-min) 11
Rated Speed (RPM) 4000
Stages 2
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 27

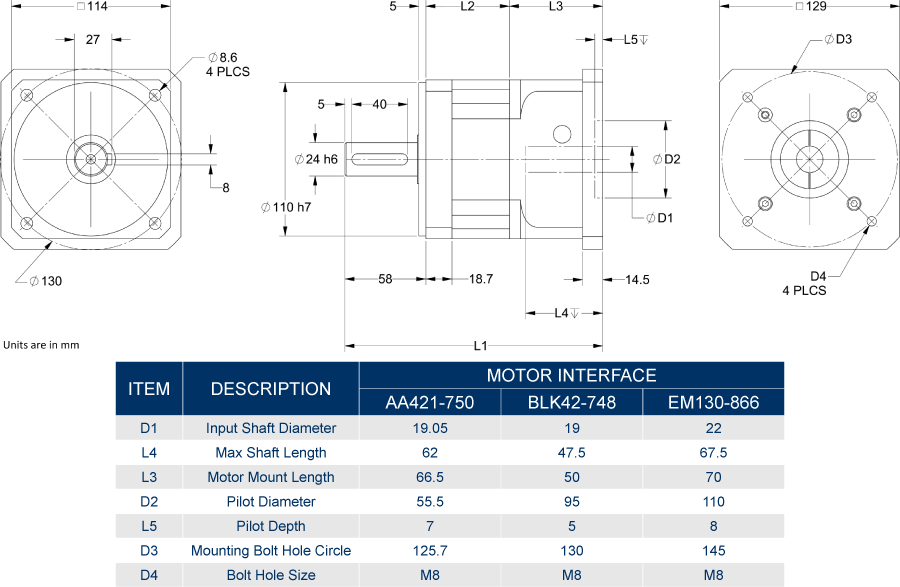

L2 Length (mm) 77
Weight (lbs) 12.79
Interested in large quantity discount?

Product Information

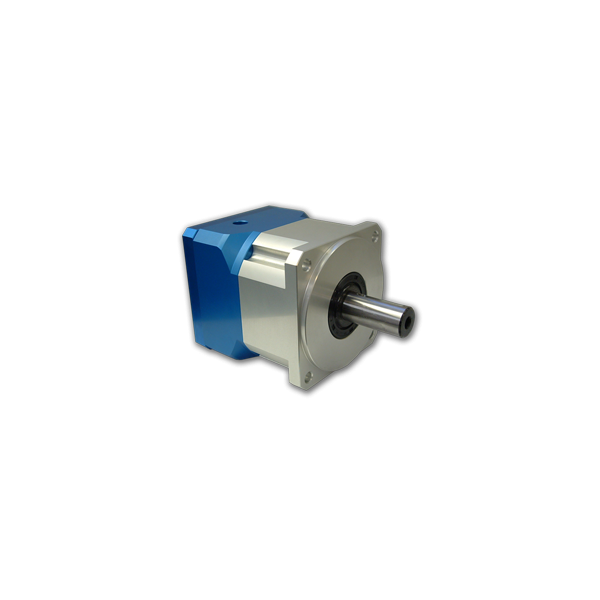

The GBPH-120x-NP Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This Planetary Gearbox will match your servo or stepping motor and is ideal for NEMA 42 motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Backlash as Low as 7 arc-min
  • Gear Ratios from 3 to 343
  • Available in 1, 2 and 3 Stage Models
  • Patented Precision Clamping System
  • Lifetime Lubrication
  • High Durability
  • Operating Temperature of -15° to 90°C

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
