GBPH-1801-NP-007

GBPH-1801-NP-007

GBPH-1802-NP-009

GBPH-1802-NP-009

GBPH-1801-NP-010

Unit Price:
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 10
Rated Output Torque (in-lbs) 8736
Max Output Torque (in-lbs) 26208
Backlash Maximum (arc-min) 5
Rated Speed (RPM) 3000
Stages 1
Efficiency (%) 97
Torsional Rigidity (Nm/arcmin) 115

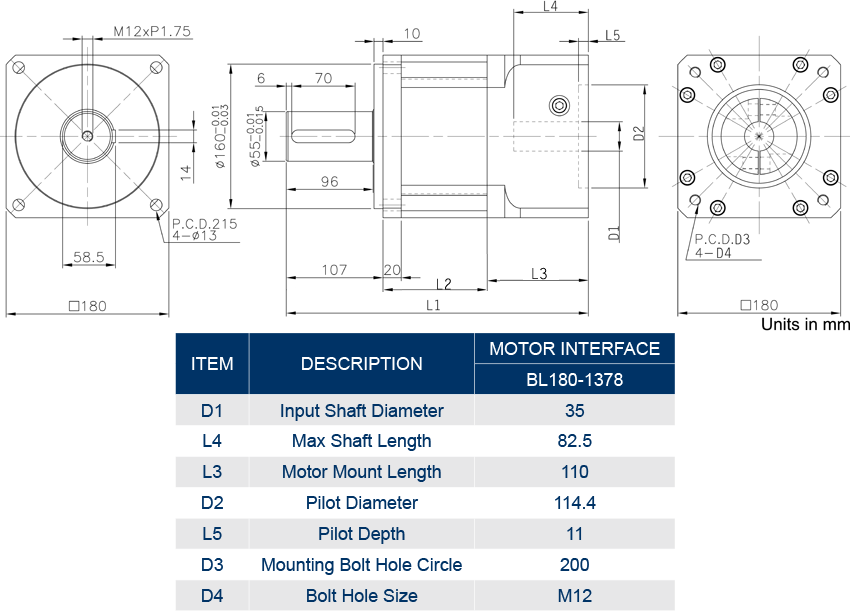

L2 Length (mm) 90
Weight (lbs) 84.00
Interested in large quantity discount?

Product Information

The GBPH-180-NP Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This Planetary Gearbox will match your servo or stepping motor and is ideal for 170 - 200mm motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value.

  • Backlash as Low as 5 arc-min
  • Gear Ratios from 3 to 100
  • Available in 1 and 2 Stage Models
  • Patented Precision Clamping System
  • Lifetime Lubrication
  • High Durability
  • Operating Temperature of -15° to 90°C

Spec Sheet (PDF)

Mounting Form

Installation Guide
