GBPHR-0602-SP-070-SMH60-551

GBPHR-0602-SP-070-SMH60-551

GBPHR-0602-SP-100-SMH60-551

GBPHR-0602-SP-100-SMH60-551

GBPHR-0602-SP-100-AA231-250

Unit Price:
$941.00
Quantity Discount
  • Buy 10 for $855.30 each and save 9%
  • Buy 25 for $822.41 each and save 13%
  • Buy 50 for $759.94 each and save 19%
  • Buy 100 for $732.80 each and save 22%
  • Buy 250 for $707.53 each and save 25%
  • Buy 500 for $683.95 each and save 27%
  • Buy 1000 for $661.88 each and save 30%
  • Buy 2500 for $641.20 each and save 32%
Inventory:
0
Out of Stock
More Information
Gear Ratio (X:1) 100
Rated Output Torque (in-lbs) 390
Max Output Torque (in-lbs) 1170
Backlash Maximum (arc-min) 16
Rated Speed (RPM) 5500
Stages 2
Efficiency (%) 88
Torsional Rigidity (Nm/arcmin) 6.5
L2 Length (mm) 167
Weight (lbs) 11.00
Interested in large quantity discount?

Product Information

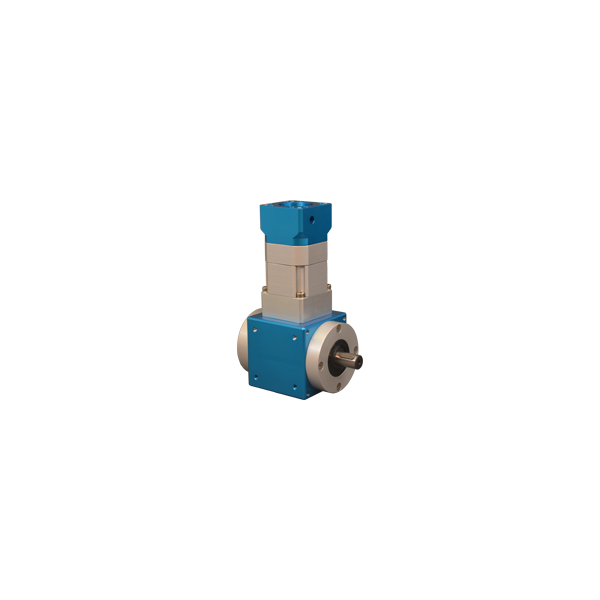

The GBPHR-060x-SP Series right angle planetary gearbox offers you the precision you need at the prices you want! This right angle planetary gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This right angle planetary gearbox will match your servo or stepping motor. It comes in 18 different gear ratios. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this right angle planetary gearbox offers you an extraordinary value. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Gear Ratios From 3 to 100
  • Backlash Lower Than 22 arc-min
  • Available in 1 and 2 Stage Models
  • Lifetime Lubrication
  • High Durability

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
