GBPHR-0901-SP-007-AA341-500
| Gear Ratio (X:1) | 7 |
|---|---|
| Rated Output Torque (in-lbs) | 1469 |
| Max Output Torque (in-lbs) | 4407 |
| Backlash Maximum (arc-min) | 12 |
| Rated Speed (RPM) | 2900 |
| Stages | 1 |
| Efficiency (%) | 91 |
| Torsional Rigidity (Nm/arcmin) | 14 |
| L2 Length (mm) | 187 |
| Weight (lbs) | 22.52 |
Interested in large quantity discount?
Product Information

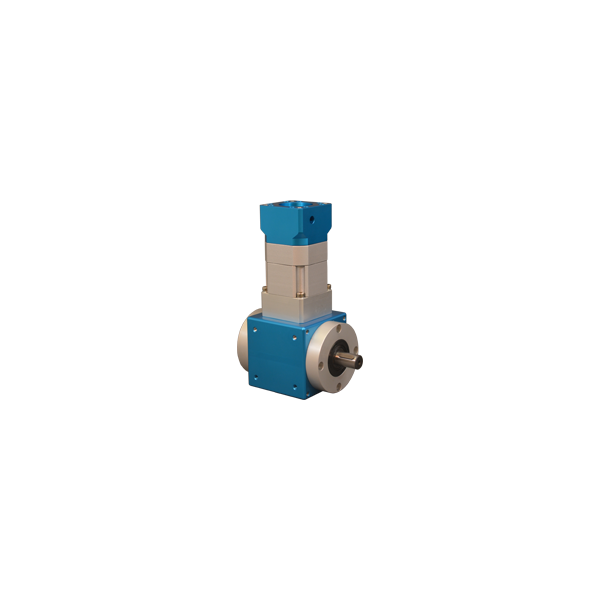

The GBPHR-090x-SP Series right angle planetary gearbox offers you the precision you need at the prices you want! This right angle planetary gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This right angle planetary gearbox will match your servo or stepping motor. It comes in 18 different gear ratios. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this right angle planetary gearbox offers you an extraordinary value. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Gear Ratios From 3 to 100
- Backlash Lower Than 22 arc-min
- Available in 1 and 2 Stage Models
- Lifetime Lubrication
- High Durability
.png)
Motor interface AA341-500 is compatible with Anaheim Stepper Motors 34Y1/34Y2, 34K1/34K2, and 34N1/34N2, and Anaheim Brushless Motors BLY34.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
.png)
