GBPN-0402-020
| Gear Ratio (X:1) | 20 |
|---|---|
| Rated Output Torque (in-lbs) | 177 |
| Max Output Torque (in-lbs) | 283 |
| Backlash Maximum (arc-min) | 19 |
| Maximum Input Speed (RPM) | 18000 |
| Stages | 2 |
| Efficiency (%) | 94 |
| Torsional Rigidity (Nm/arcmin) | 1.1 |
| L2 Length (mm) | 52 |
| Weight (lbs) | 0.99 |
Interested in large quantity discount?
Product Information

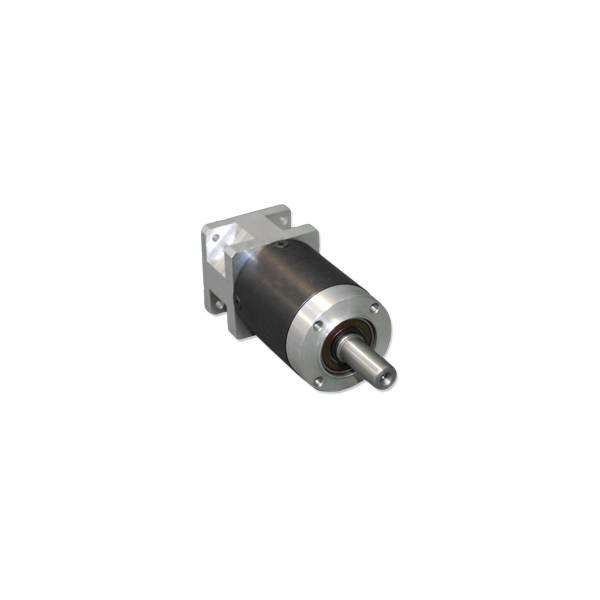

Planetary Gearboxes for NEMA 17 stepper motors, dc motors, or servo motors. The GBPN-040x Series Planetary Gears are designed to be high quality and reliable in-line planetary gears. They are avaliable in many sizes with gear ratios ranging from 3:1 to 512:1.These planetary gearboxes come in a one-piece housing that produce consistent low backlash with permissible peak input speeds up to 18,000 rpm. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
- Compatable with NEMA Size 17 Motors
- Backlash as Low as 15 arc-min
- Gear Ratios from 3:1 to 512:1
- Long Design Life, Over 30,000 Hours
- Up to 96 Percent Efficiency
- Peak Input Speeds of Up to 18000 rpm
- Lifetime Lubrication, High Durability
.png)
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:
| Motor Interface / Suffix | Anaheim Stepper Series | Anaheim BLDC Series | Anaheim Servo Series |
| AA171-197 | 17Y, 17L | BLY17xD (dual shaft) | - |
| SMH40-315 | - | - | SMC40, SMH40 |
