GBPN-0402-025

GBPN-0402-025

GBPN-0402-040

GBPN-0402-040

GBPN-0402-032

Unit Price:
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 32
Rated Output Torque (in-lbs) 177
Max Output Torque (in-lbs) 283
Backlash Maximum (arc-min) 19
Maximum Input Speed (RPM) 18000
Stages 2
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 1.1
L2 Length (mm) 52
Weight (lbs) 0.99
Interested in large quantity discount?

Product Information

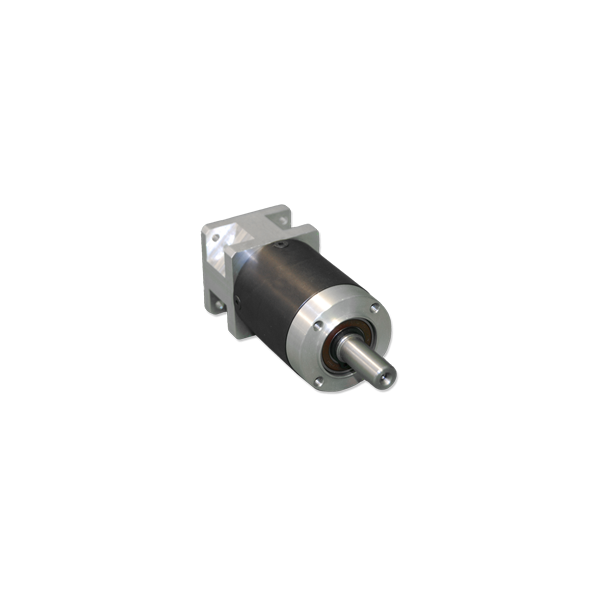

Planetary Gearboxes for NEMA 17 stepper motors, dc motors, or servo motors. The GBPN-040x Series Planetary Gears are designed to be high quality and reliable in-line planetary gears. They are avaliable in many sizes with gear ratios ranging from 3:1 to 512:1.These planetary gearboxes come in a one-piece housing that produce consistent low backlash with permissible peak input speeds up to 18,000 rpm. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatable with NEMA Size 17 Motors
  • Backlash as Low as 15 arc-min
  • Gear Ratios from 3:1 to 512:1
  • Long Design Life, Over 30,000 Hours
  • Up to 96 Percent Efficiency
  • Peak Input Speeds of Up to 18000 rpm
  • Lifetime Lubrication, High Durability



For custom input dimensions, or non-Anaheim Automation motors, fill out our  Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

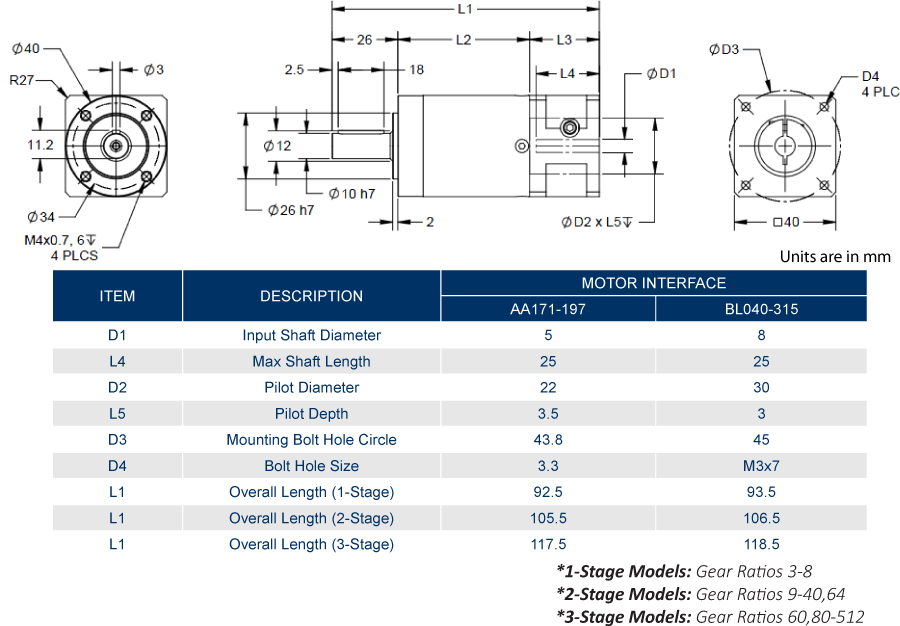

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA171-197 17Y, 17L BLY17xD (dual shaft) -
SMH40-315 - - SMC40, SMH40

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form

Installation Guide
