GBPNR-1203-CS-100

GBPNR-1203-CS-100

GBPNR-1203-CS-160

GBPNR-1203-CS-160

GBPNR-1203-CS-120

Unit Price:
As low as $0.00
Quantity Discount
Inventory:
Out of Stock
More Information
Gear Ratio (X:1) 120
Rated Output Torque (in-lbs) 2035
Max Output Torque (in-lbs) 3257
Backlash Maximum (arc-min) 18
Maximum Input Speed (RPM) 6500
Stages 3
Efficiency (%) 88
Torsional Rigidity (Nm/arcmin) 12

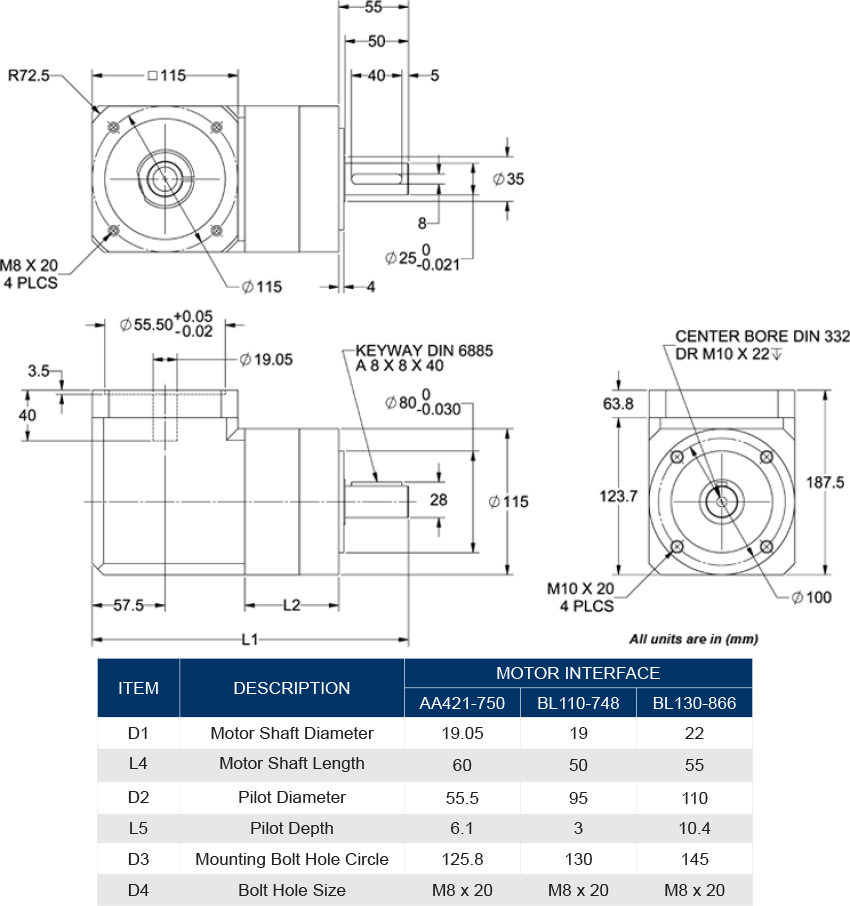

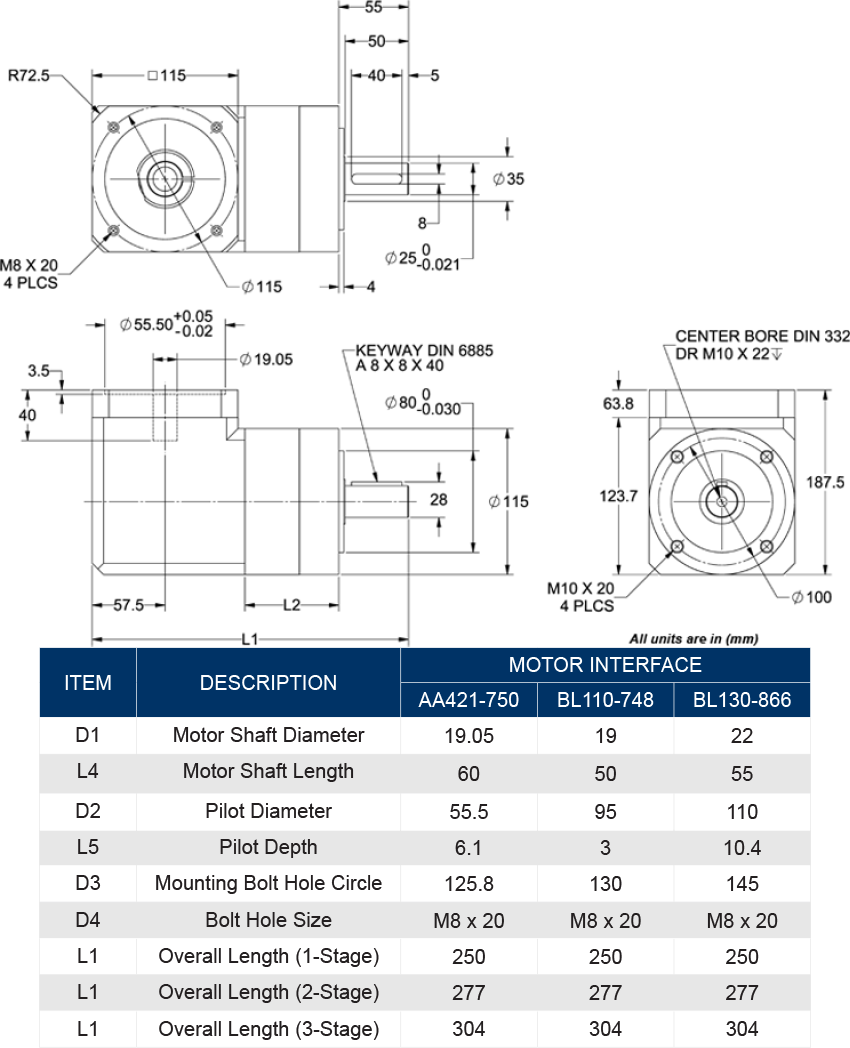

L1 Length (mm) 304
L2 Length (mm) 128
Weight (lbs) 36.60
Interested in large quantity discount?

Product Information

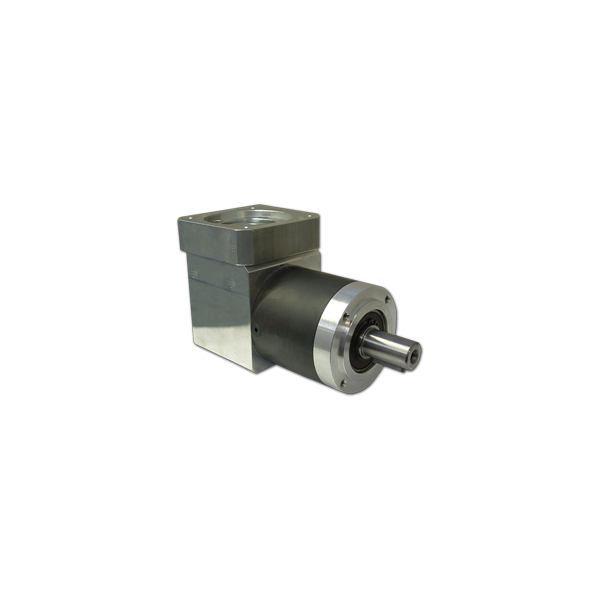

The GBPNR-120x-CS Series right angle planetary gearbox offers you the precision you need at the prices you want! This right angle planetary gearbox is designed with very low backlash for motion control, automation, and robotic applications requiring precise position requirements. This right angle planetary gearbox will match your servo or stepping motor. It comes in 22 different gear ratios. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this right angle planetary gearbox offers you an extraordinary value. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

Gearbox Ordering InformationTo determine a complete gearbox part number, please select an item from Table 1 based on the given gearbox specifications. Second, select an item from Table 2 based on the standard compatible Anaheim Automation stepper, servo, or brushless motors listed.

  • Gear Ratios from 3 to 512
  • Backlash Lower than 18 arc-min
  • Available in 1, 2 and 3 Stage Models
  • Lifetime Lubrication
  • High Durability
