GBPS-0403-CS-315

1pc Price:
As low as $534.00
Quantity Discount
Inventory:
More Information
Gear Ratio (X:1) 315
Rated Output Torque (in-lbs) 97
Max Output Torque (in-lbs) 146
Backlash Maximum (arc-min) 12
Maximum Input Speed (RPM) 6000
Stages 3
Efficiency (%) 85
Torsional Rigidity (Nm/arcmin) 1.2
Weight (lbs) 1.69
Interested in large quantity discount?

Motor interface AA171-197 is compatible with Anaheim Stepper Motor series 14Y, 15Y, 17Y, 17Y9, and 17L, and with Anaheim Brushless Motor series BLY17xD, dual shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at [email protected]

Motor interface AA172-197 is compatible with Anaheim Brushless Motor series BLY17xS, single shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at [email protected]

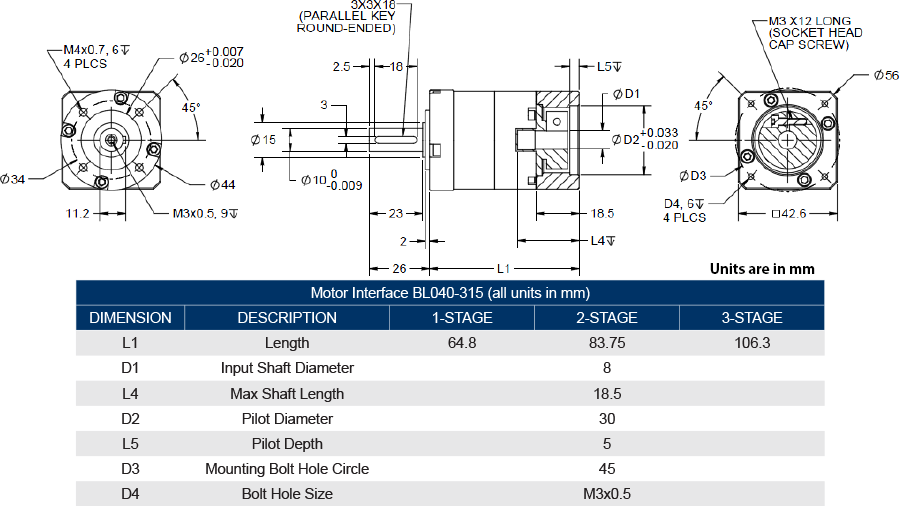

Motor interface BL040-315 is compatible with Anaheim Servo Motor series KNC-SRV-SMC40S and KNC-SRV-SMH40S. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number. The BL040 has replaced the old SMH40 designation. All dimensions between the two part numbers are the same.

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at [email protected]

.STEP File (.RAR File)

Spec Sheet (PDF)

Mounting Form
