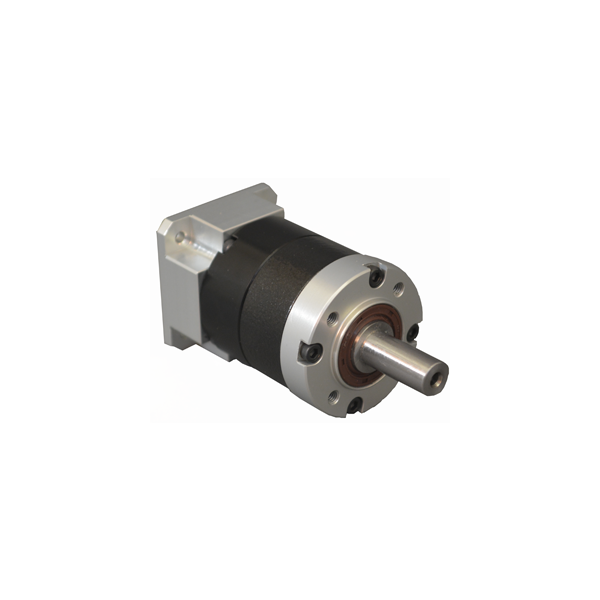

GBPS-0403-CS-567
| Gear Ratio (X:1) | 567 |
|---|---|
| Rated Output Torque (in-lbs) | 89 |
| Max Output Torque (in-lbs) | 134 |
| Backlash Maximum (arc-min) | 12 |
| Maximum Input Speed (RPM) | 6000 |
| Stages | 3 |
| Efficiency (%) | 85 |
| Torsional Rigidity (Nm/arcmin) | 1.2 |
| Weight (lbs) | 1.69 |
Interested in large quantity discount?
Motor interface AA171-197 is compatible with Anaheim Stepper Motor series 14Y, 15Y, 17Y, 17Y9, and 17L, and with Anaheim Brushless Motor series BLY17xD, dual shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Motor interface AA172-197 is compatible with Anaheim Brushless Motor series BLY17xS, single shaft motors. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
Motor interface SMH40-315 is compatible with Anaheim Servo Motor series KNC-SRV-SMC40S and KNC-SRV-SMH40S. Choose a gearbox item from the product table above, and then select the appropriate motor interface ("suffix") on the individual product page to create a complete gearbox part number.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
