GBPS-0902-NM-050

GBPS-0902-NM-050

GBPS-0902-NM-070

GBPS-0902-NM-070

GBPS-0902-NM-060

1pc Price:
As low as $0.00
Quantity Discount
Inventory:
More Information
Gear Ratio (X:1) 60
Rated Output Torque (in-lbs) 1195
Max Output Torque (in-lbs) 2151
Backlash Maximum (arc-min) 5
Maximum Input Speed (RPM) 8000
Stages 2
Efficiency (%) 94
Torsional Rigidity (Nm/arcmin) 12
L2 Length (mm) 86
Weight (lbs) 12.35
Interested in large quantity discount?

Product Information

The GBPS-090x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-090x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 3 arcminutes, 22 gear ratios for rated torque up to 1328 in-lbs (21,248 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatible with NEMA Size 34
  • Backlash as Low as 3 arc-min
  • Gear Ratios from 3:1 to 100:1
  • Long Design Life, Over 20,000 hrs
  • Up to 97 Percent Efficiency
  • Low Noise Helical Gears
  • Max Input Speeds Up to 8,000 RPM
  • Operating Temperature of -10° to +90° C
  • Lifetime Lubrication

For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com

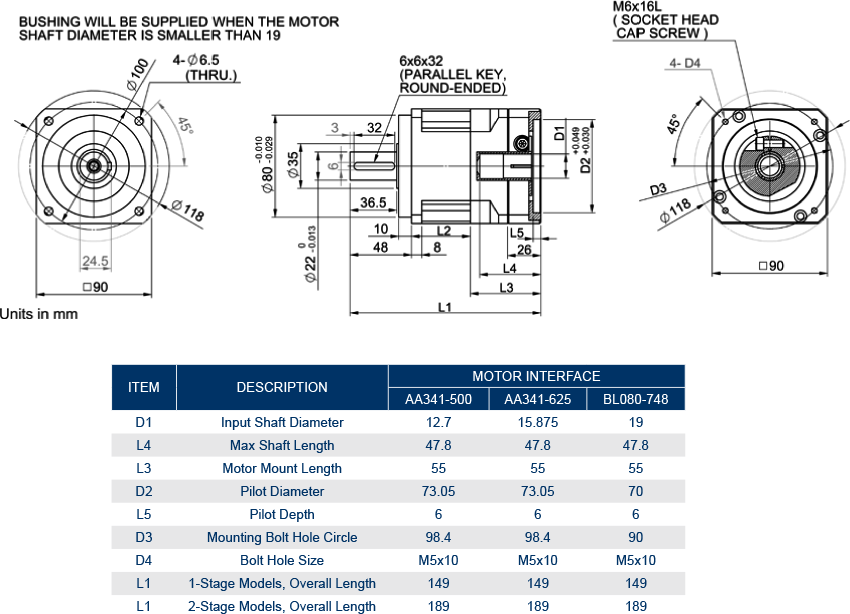

Standard Gearbox part numbers have a "Suffix" representing a mounting flange ("motor interface") for specific Anaheim motor series:

Motor Interface / Suffix Anaheim Stepper Series Anaheim BLDC Series Anaheim Servo Series
AA341-500

34Y1, 34K1, 34N1,

34Y2, 34K2, 34N2

BLY34 -
AA341-625 34Y3, 34K3, 34N3 - -
BLK32-748 - BLK32 -
SMH80-748 - -

SMC80S-0075, SMC80S-0100,

SMH80S-0075, SMH80S-0100

Spec Sheet (PDF)

Mounting Form
